AX Series Shutter Mounted Fans
SKU#:
AX SERIES
Designed for Industrial, Commercial & Farming applications.
The AX series exhaust fan is a sturdily constructed, direct drive, horizontal discharge fan that is typically used for general ventilation of factories, garages, warehouses and other industrial or commercial buildings. The AX fans are available in multiple single-speed variations as well as two-speed and variable speed models.
The AX series housings are constructed of heavy duty aluminum with built in shutters that automatically open when the fan starts and gravity closes when the fan stops.
Some models now available with optional DC volt motor. Call for details.
- Sturdily constructed from all-aluminum extrusions.
- 8” - 24” models have heavy wire chrome plated OSHA guards on intake side of fan.
- 30”, 36” & 42” models have grey powder coated guards.
- Totally enclosed air over motor with overload protection.
- Note: Fans up to 24" can ship via UPS.

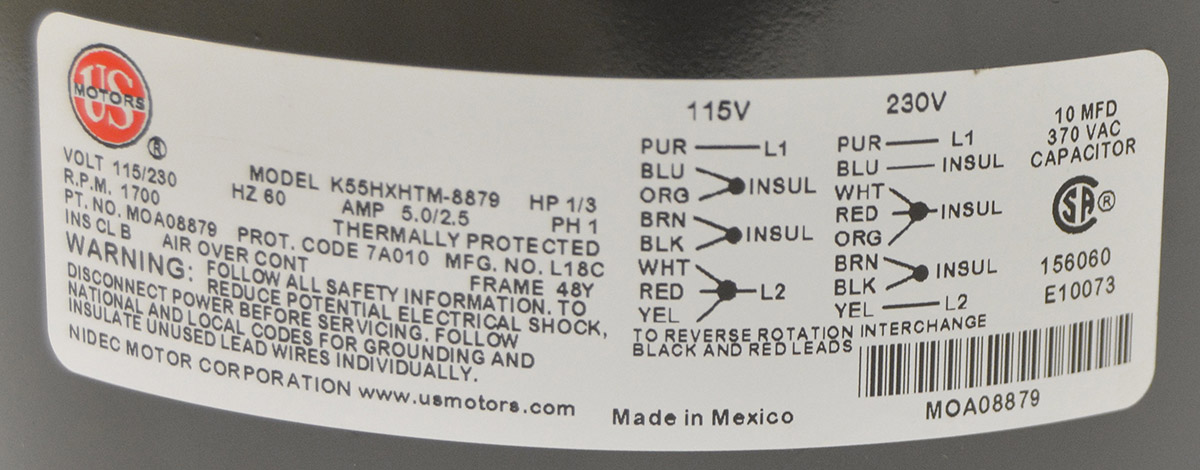

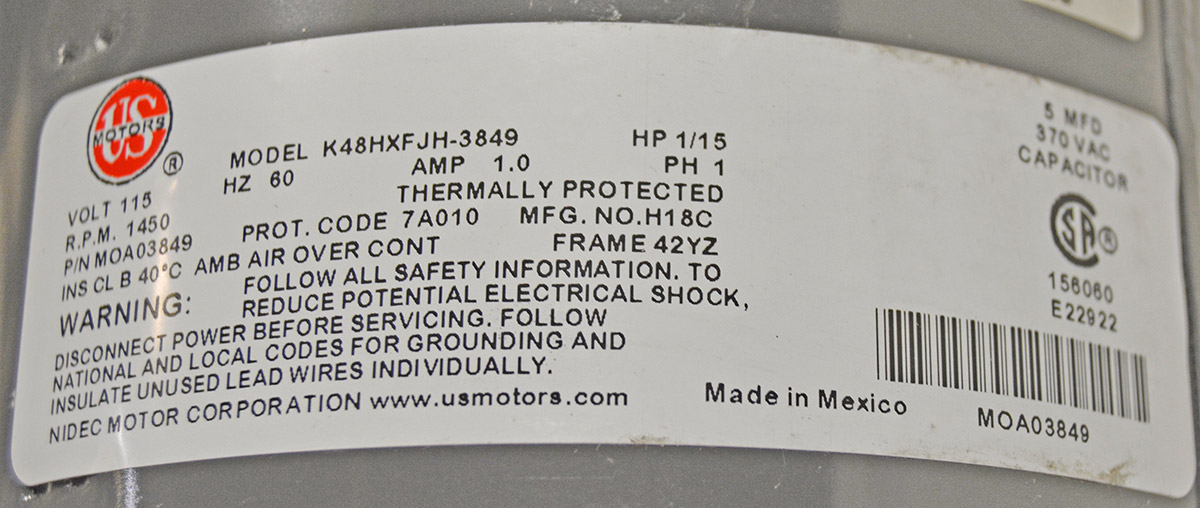

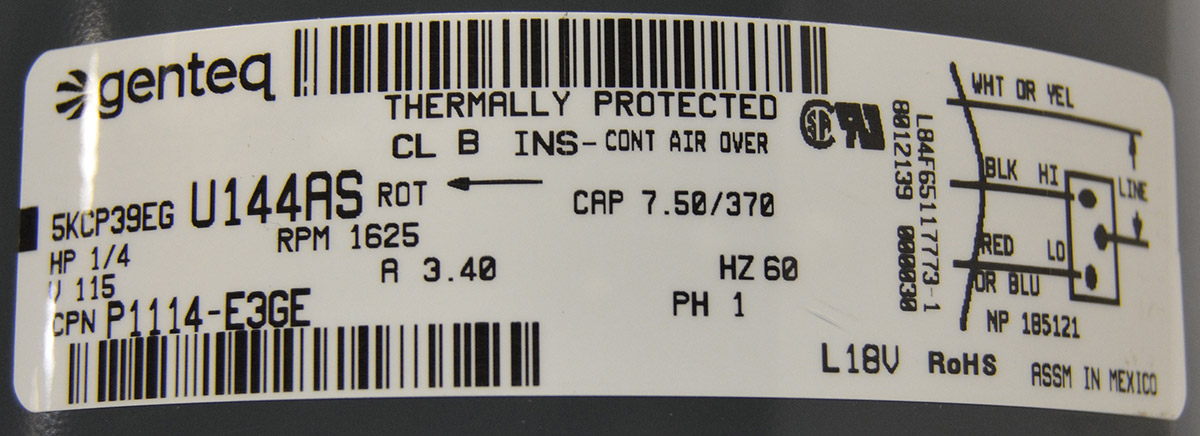

| SINGLE PHASE | THREE PHASE *** | BLADE DIAMETER | RPM | HP (SINGLE PHASE) | VOLTAGE (SINGLE PHASE) | AMPS (FLA) (SINGLE PHASE) | WEIGHT (LBS) | dB(A) @5 ft | CFM @ STATIC PRESSURE | FRAMING DIMENSIONS | ||||||||||||||
| 0.00" | 0.10" | 0.125" | 0.25" | |||||||||||||||||||||
| SINGLE SPEED - VARIABLE SPEED FANS | ||||||||||||||||||||||||
| AX12-1V | AX12-1* | 12" | 1700 | 1/3 | 115/230 | 3.8/1.9 | 26 | 63 | 1650 | 1560 | 1525 | 1400 | 14" X 14" | |||||||||||
| AX12-1VHE | - | 12" | 1450 | 1/15 | 115 | 1.0 | 22 | 60 | 1350 | 1290 | 1275 | 1150 | 14" X 14" | |||||||||||
| AX14-1V | AX14-1* | 14" | 1700 | 1/3 | 115/230 | 3.8/1.9 | 29 | 67 | 2170 | 2030 | 1950 | 1900 | 16" X 16" | |||||||||||
| AX14-1VHE | - | 14" | 1450 | 1/15 | 115 | 1.0 | 25 | 64 | 1600 | 1525 | 1500 | 1300 | 16" X 16" | |||||||||||
| AX16-1V | AX16-1* | 16" | 1700 | 1/3 | 115/230 | 3.8/1.9 | 30 | 68 | 2570 | 2470 | 2410 | 2260 | 18" X 18" | |||||||||||
| AX16-1VHE | - | 16" | 1450 | 1/15 | 115 | 1.0 | 26 | 63 | 1850 | 1750 | 1700 | 1550 | 18" X 18" | |||||||||||
| AX18-1V | AX18-1* | 18" | 1700 | 1/3 | 115/230 | 3.8/1.9 | 36 | 71 | 3150 | 3000 | 2900 | 2575 | 20" X 20" | |||||||||||
| AX20-1V | AX20-1* | 20" | 1700 | 1/3 | 115/230 | 3.8/1.9 | 39 | 77 | 3620 | 3420 | 3340 | 3120 | 22" X 22" | |||||||||||
| AX24-1V | -- | 24" | 1100 | 1/3 | 115/230 | 4.4/2.2 | 43 | 72 | 5500 | 5400 | 5310 | 5100 | 26" X 26" | |||||||||||
| -- | AX24-1* | 24" | 1100 | 1/3 | -- | -- | 43 | 77 | 5500 | 5400 | 5310 | 5100 | 26" X 26" | |||||||||||
| SINGLE SPEED FANS | ||||||||||||||||||||||||
| AX12-2 | -- | 12" | 1625 | 1/4 | 115 | 2.7 | 27 | 63 | 1640 | 1540 | 1510 | 1390 | 14" X 14" | |||||||||||
| AX14-2 | -- | 14" | 1625 | 1/4 | 115 | 2.7 | 30 | 67 | 2170 | 2070 | 2030 | 1860 | 16" X 16" | |||||||||||
| AX16-2 | -- | 16" | 1625 | 1/4 | 115 | 2.7 | 31 | 68 | 2370 | 2270 | 2210 | 2060 | 18" X 18" | |||||||||||
| AX18-2 | -- | 18" | 1625 | 1/3 | 115 | 4.1 | 37 | 73 | 3200 | 3090 | 3040 | 2920 | 20" X 20" | |||||||||||
| AX20-2 | -- | 20" | 1625 | 1/3 | 115 | 4.1 | 39 | 77 | 3420 | 3220 | 3170 | 2920 | 22" X 22" | |||||||||||
| AX24-2 | -- | 24" | 1100 | 1/3 | 115 | 5.4 | 45 | 70 | 5000 | 4500 | 4300 | 3600 | 26" X 26" | |||||||||||
| AX30-2 | -- | 30" | 1100 | 1/3 | 115/230 | 4.4/2.2 | 72 | 82 | 8000 | 7000 | 6000 | 5000 | 33" X 33" | |||||||||||
| AX36-7 | AX36-7M** | 36" | 850 | 1/2 | 115/230 | 6.6/3.3 | 88 | 72 | 10000 | 8500 | 8000 | 6200 | 39" X 39" | |||||||||||
| TWO SPEED FANS *NOTE: 8 &10” models feature a cord & plug and pull chain control. | ||||||||||||||||||||||||
| *AX08 | -- | 8" | 1600/1300 | 25W | 115 | 0.2 | 13 | 48 | 360/292 | 270/150 | 230/110 | - | 12"x12" | |||||||||||
| *AX10 | -- | 10" | 1480/1150 | 60W | 115 | 0.5 | 15 | 55 | 500/388 | 420/300 | 400/250 | - | 12"x12" | |||||||||||
| AX12-3 | -- | 12" | 1725/1140 | 1/4 | 115 | 3.4 | 27 | 64 | 1670/1100 | 1600/950 | 1575/900 | 1450/625 | 14" X 14" | |||||||||||
| AX14-3 | -- | 14" | 1725/1140 | 1/4 | 115 | 3.4 | 31 | 67 | 2190/1440 | 2080/1325 | 2000/1300 | 1950/850 | 16" X 16" | |||||||||||
| AX16-3 | -- | 16" | 1725/1140 | 1/4 | 115 | 3.4 | 34 | 69 | 2580/1770 | 2480/1620 | 2430/1560 | 2270/1020 | 18" X 18" | |||||||||||
| AX18-3 | -- | 18" | 1725/1140 | 1/3 | 115 | 5.5/2.9 | 38 | 74 | 3200/2310 | 3050/2030 | 2950/1960 | 2625/1750 | 20" X 20" | |||||||||||
| AX20-3 | -- | 20" | 1725/1140 | 1/3 | 115 | 5.5/2.9 | 41 | 77 | 3640/2420 | 3440/2270 | 3360/2210 | 3140/1890 | 22" X 22" | |||||||||||
| SINGLE SPEED EXPLOSION PROOF FANS (Explosion Proof Motors are DIVISION 1 - CLASS 1 - GROUP C & D and CLASS 2 - GROUP F & G) | ||||||||||||||||||||||||
| Class I, Group C - Atmospheres containing ethyl ether, ethylene, gases or vapors of equivalent hazard. Class I, Group D - Atmospheres such as acetone, ammonia, benzene, butane, cyclopropane, ethanol, gasoline, hexane, methane, natural gas, naphtha, propane, or gases or vapors of equivalent hazard. Class II Group F - Atmospheres containing carbonaceous dust, including carbon black, charcoal, coal, or coke dusts that have more than 8% total entrapped volatiles, or dusts that have been sensitized by other materials so that they present an explosion hazard. Class II Group G - Atmospheres containing combustible dusts not included in group E or F, including flour, grain, wood, plastic and chemicals. | ||||||||||||||||||||||||
| AX12-4 | AX12-4* | 12" | 1725 | 1/3 | 115/230 | 6.6/3.3 | 49 | 63 | 1670 | 1600 | 1575 | 1450 | 14" X 14" | |||||||||||
| AX14-4 | AX14-4* | 14" | 1725 | 1/3 | 115/230 | 6.6/3.3 | 49 | 67 | 2190 | 2080 | 2000 | 1950 | 16" X 16" | |||||||||||
| AX16-4 | AX16-4* | 16" | 1725 | 1/3 | 115/230 | 6.6/3.3 | 51 | 68 | 2580 | 2480 | 2430 | 2270 | 18" X 18" | |||||||||||
| AX18-4 | AX18-4* | 18" | 1725 | 1/3 | 115/230 | 6.6/3.3 | 56 | 73 | 3200 | 3050 | 2950 | 2625 | 20" X 20" | |||||||||||
| AX20-4 | AX20-4* | 20" | 1725 | 1/3 | 115/230 | 6.6/3.3 | 57 | 77 | 3640 | 3440 | 3360 | 3140 | 22" X 22" | |||||||||||
| AX24-4 | AX24-4* | 24" | 1725 | 1/3 | 115/230 | 6.6/3.3 | 57 | 77 | 5520 | 5410 | 5330 | 5130 | 26" X 26" | |||||||||||
| MODEL (SINGLE PHASE) | BLADE DIA. | RPM | HP | VOLT | AMPS (FLA) | WEIGHT (LBS) | dB(A) @5 ft | CFM @ STATIC PRESSURE | FRAMING DIMENSIONS | |||||||||||||||
| 0.00" | 0.10" | 0.125" | 0.25" | |||||||||||||||||||||
| CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | |||||||||
| AX42-7 | 42" | 850 | 1 | 230 | 5 | 122 | 84 | 13100 | 0.89 | 1.3 | 1 | 11860 | 0.92 | 1.42 | 1.03 | 11400 | 0.92 | 1.43 | 1.04 | 8800 | 0.97 | 1.32 | 1.09 | 45" x 45" |
| For three phase motors, substitute “*” with “M” for 230/460 volt or “P” for 575 volt. **NOTE: AX36-7M is only available in 208-230/460 volt for three phase applications. Other voltages in single or three phase are available. 50HZ voltages are available. Consult factory. ***These models are not cETLus certified. | ||||||||||||||||||||||||
| CFM values listed are summarized for convenience. For full performance data refer to our Delair program. | ||||||||||||||||||||||||
 | ||||||||||||||||||||||||
 | |||||
| MODEL | A | B | C | D | |
| AX | AX-4~ | ||||
| AX08 | 14 3/4” | 11 3/4” | 5” | 3 7/8" | - |
| AX10 | 14 3/4” | 11 3/4” | 5” | 3 7/8" | - |
| AX12 | 16 3/4” | 13 3/4” | 5” | 11” | 13 3/4” |
| AX14 | 18 3/4” | 15 3/4” | 5” | 11” | 13 3/4” |
| AX16 | 20 3/4” | 17 3/4” | 5” | 11” | 13 3/4” |
| AX18 | 22 3/4” | 19 3/4” | 5” | 12” | 14” |
| AX20 | 24 3/4” | 21 3/4” | 5” | 12” | 14” |
| AX24 | 28 3/4” | 25 3/4” | 5” | 12” | 13 3/4” |
| AX30 | 35 1/4” | 32 3/4” | 5” | 13” | - |
| AX36 | 41 1/4” | 38 3/4” | 5” | 12” | - |
| AX42 | 47 3/4” | 44 3/4” | 5” | 11” | - |
| Explosion Proof Motor, 50Hz or 3 phase. | |||||
