Replacement Parts for AX Series Shutter Mounted Fans

Back to Replacement Parts List

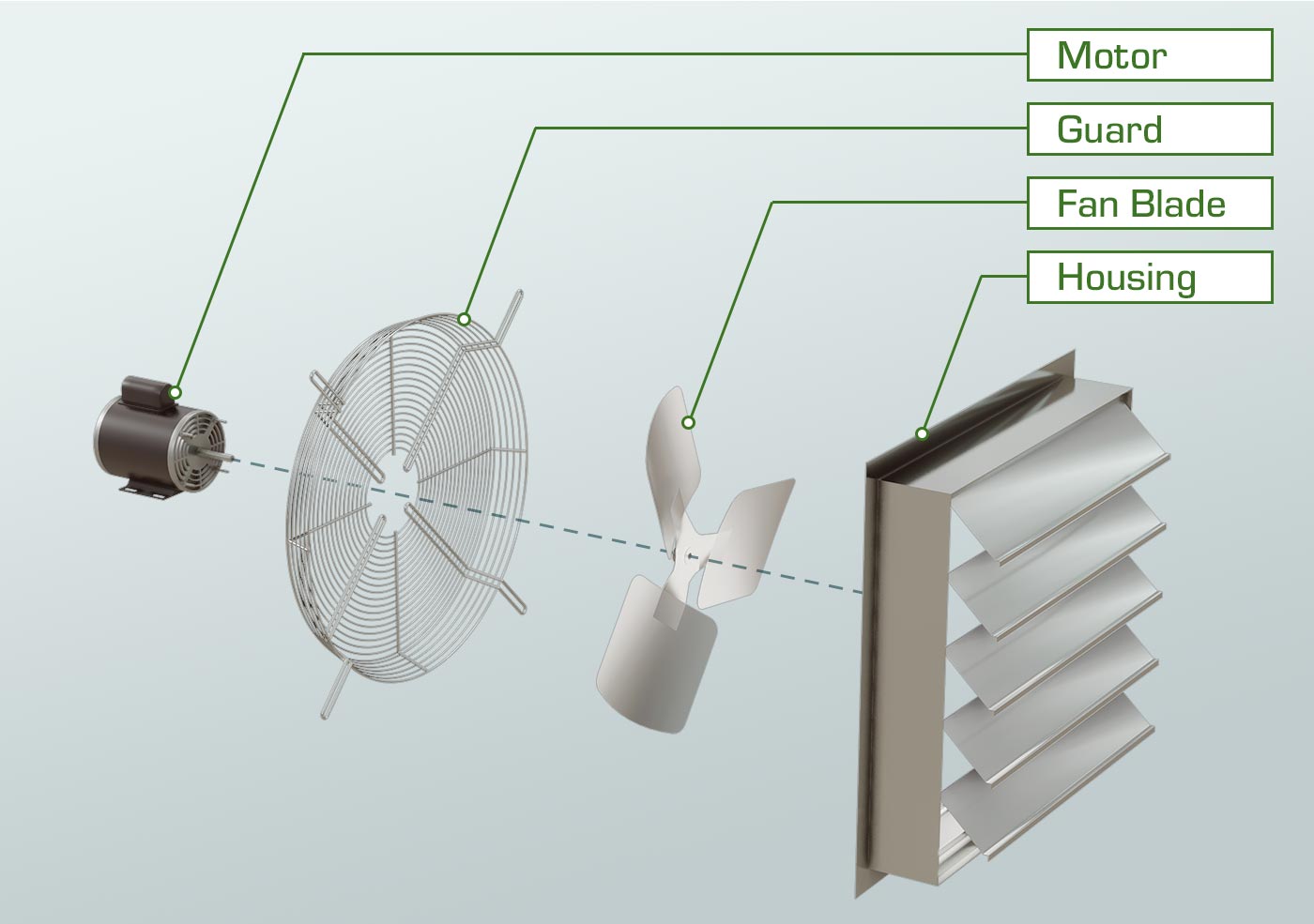

Exploded view of an AX fan with motor, guard, fan blade and housing.



Model #
Motor Part #
AX08-3
R-P1000-B4
Model #
Motor Part #
AX10-3
R-P1000-B4
Model #
Motor Part #
AX12-1M
R-3M211-V
AX12-1P
R-3M511
AX12-1V
R-MOAO8879
AX12-1VHE
R-MOAO3849
AX12-2
R-P1104-CE
AX12-3
R-P1114-E3GE
AX12-4
R-P1107-F
AX12-4M
R-3MX211C
AX12-4P
R-3MX511C
Model #
Motor Part #
AX14-1M
R-3M211-V
AX14-1P
R-3M511
AX14-1V
R-MOAO8879
AX14-1VHE
R-MOAO3849
AX14-2
R-P1104-CE
AX14-3
R-P1114-E3GE
AX14-4
R-P1107-F
AX14-4M
R-3MX211C
AX14-4P
R-3MX511C
Model #
Motor Part #
AX16-1M
R-3M211-V
AX16-1P
R-3M511
AX16-1V
R-MOAO8879
AX16-1VHE
R-MOAO3849
AX16-2
R-P1104-CE
AX16-3
R-P1114-CF
AX16-4
R-P1107-F
AX16-4M
R-3MX211C
AX16-4P
R-3MX511C
Model #
Motor Part #
AX18-1M
R-3M211-V
AX18-1P
R-3M511
AX18-1V
R-P1161-F
AX18-2
R-P1104-CF
AX18-3
R-P1114-CF
AX18-4
R-P1107-F
AX18-4M
R-3MX211C
AX18-4P
R-3MX511C
Model #
Motor Part #
AX20-1M
R-3M211-V
AX20-1P
R-3M511
AX20-1V
R-P1161-F
AX20-2
R-P1104-CF
AX20-3
R-P1114-CF
AX20-4
R-P1107-F
AX20-4M
R-3MX211C
AX20-4P
R-3MX511C
Model #
Motor Part #
AX24-1M
R-3M251C
AX24-1P
R-3M511
AX24-1V
R-P1166-F
AX24-2
R-P1105-CF
AX24-4
R-P1107-F
AX24-4M
R-3MX211C
AX24-4P
R-3MX511C
Model #
Motor Part #
AX30-2
R-P1166-F
Model #
Motor Part #
AX36-7
R-P1170-CG
AX36-7M
R-P1170-CG460
Model #
Motor Part #
AX42-7
R-P1170-C
Model #
Guard Part #
8" models
R-B-2X115
10" models
R-B-2X115
12" models
R-B-2X116
14" models
R-B-2X117
16" models
R-B-2X117
18" models
R-B-2X118
20" models
R-B-2X118
24" models
R-B-2X119
30" models
R-B-2X113
36" models
R-B-2X114
42" models
R-B-2X150
Model #
Fan Blade Part #
AX08-3
R-B-P3020-08B32
Model #
Fan Blade Part #
AX10-3
R-B-P3020-10B31
Model #
Fan Blade Part #
AX12-1M
R-B-P3011-12E-5/8B
AX12-1P
R-B-P3011-12E-5/8B
AX12-1V
R-B-P3011-12E
AX12-1VHE
R-B-1B205
AX12-2
R-B-P3011-12E
AX12-3
R-B-P3011-12E
AX12-4
R-B-P3011-12EAL
AX12-4M
R-B-P3011-12EAL-5/8
AX12-4P
R-B-P3011-12EAL-5/8
Model #
Fan Blade Part #
AX14-1M
R-B-P3000-14D30-5/8B
AX14-1P
R-B-P3000-14D30-5/8B
AX14-1V
R-B-P3000-14D30
AX14-1VHE
R-B-P3000-14D30
AX14-2
R-B-P3000-14D30
AX14-3
R-B-P3000-14D30
AX14-4
R-B-P3000-14D30
AX14-4M
R-B-P3000-14D30-5/8B
AX14-4P
R-B-P3000-14D30-5/8B
Model #
Fan Blade Part #
AX16-1M
R-B-P3000-16D24-5/8B
AX16-1P
R-B-P3000-16D24-5/8B
AX16-1V
R-B-P3000-16D24
AX16-1VHE
R-B-P3000-16D24-14
AX16-2
R-B-P3000-16D24
AX16-3
R-B-P3000-16D24
AX16-4
R-B-P3000-16D24T
AX16-4M
R-B-1B301-5/8BT
AX16-4P
R-B-1B301-5/8BT
Model #
Fan Blade Part #
AX18-1M
R-B-P3000-18D24-5/8B
AX18-1P
R-B-P3000-18D24-5/8B
AX18-1V
R-B-P3000-18D24
AX18-2
R-B-P3000-18D24
AX18-3
R-B-P3000-18D24
AX18-4
R-B-P3000-18D24AL
AX18-4M
R-B-P3000-18D24AL-5/8B
AX18-4P
R-B-P3000-18D24AL-5/8B
Model #
Fan Blade Part #
AX20-1M
R-B-P3000-20D16-5/8B
AX20-1P
R-B-P3000-20D16-5/8B
AX20-1V
R-B-P3000-20D16
AX20-2
R-B-P3000-20D16
AX20-3
R-B-P3000-20D16
AX20-4
R-B-P3000-20D16
AX20-4M
R-B-P3000-20D16-5/8
AX20-4P
R-B-P3000-20D16-5/8
Model #
Fan Blade Part #
AX24-1M
R-B-P3000-24D12-5/8B
AX24-1P
R-B-P3000-24D12-5/8B
AX24-1V
R-B-P3000-24D12
AX24-2
R-B-P3011-24F
AX24-4
R-B-P3003
AX24-4M
R-B-P3003-5/8B
AX24-4P
R-B-P3003-5/8B
Model #
Fan Blade Part #
AX30-2
R-B-P3011-30G
Model #
Fan Blade Part #
AX36-7
R-B-P3005-36DV
AX36-7M
R-B-P3005-36DV
Model #
Fan Blade Part #
AX42-7
R-B-P3005-42DV
Model #
Housing & Shutter Part #
8" models
R-B-2X140A
10" models
R-B-2X141A
12" models
R-B-2X142A
14" models
R-B-2X143A
16" models
R-B-2X144A
18" models
R-B-2X145A
20" models
R-B-2X146A
24" models
R-B-2X147A
30" models
R-B-2X148A
36" models
R-B-2X149A
42" models
R-B-2X150A
