HAF Horizontal Air Flow Fans

SKU#:

HAF SERIES

FEATURES

  • Available in 14”, 16”, 18”, 20” and 24” sizes.
  • Totally enclosed motor on all units except the OSC models (which are ODP).
  • Fans are standard with a Bright Zinc plated OSHA guard.
  • Totally enclosed motors.
  • 120V grounded cord and plug
  • Most models available in White as an alternate to the Zinc as a special order. Call factory for details.

HAF18 FEATURES

  • 18” horizontal air flow fan.
  • Totally enclosed motor.
  • Powder coated guard has wide spacing to eliminate the build up of debris.
  • 115V, 8 foot grounded cord & plug.
  • Zinc dipped OSHA guard option available.

MODELDESCRIPTIONVOLTMOTOR HPWATTAMPSCFMCFM / WATTRPMSPEEDSPEED CONTROLAVAILABLE IN USA
HAF14-ZO*14" Zinc dipped with Hanging Bracket120V1/16600.61620-1550VariableOptional
HAF18-W18" powder coated with Hanging Bracket120V1/81131.0422735.81648VariableOptional
HAF18-PO18" White Polyolefin with OSHA Guard with Strap Mount120V1/81131.0422735.81648VariableOptional
HAF20-ZO*20" Zinc dipped with Hanging Bracket120V1/81191.0499740.91621VariableOptional
HAF24-ZO*24" Zinc dipped with Hanging Bracket120V1/41931.7795140.21138VariableOptional
HAF16‐ZO‐WOSC*16" Oscillating fan Zinc dipped with Wall Mount Bracket120V1/16600.6high: 2200-1550/1490/1280ThreeDial
HAF18‐ZO‐WOSC*18" Oscillating fan Zinc dipped with Wall Mount Bracket120V1/81131.0high: 4227high: 35.8high: 1648ThreeDialx
HAF20‐ZO‐WOSC*20" Oscillating fan Zinc dipped with Wall Mount Bracket120V1/81191.0high: 4997high: 40.9high: 1621ThreeDialx
HAF24‐ZO‐WOSC*24" Oscillating fan Zinc dipped with Wall Mount Bracket120V1/42101.85944/5562/546127.1 / 30.5 / 34.41120/1080/1006ThreeDial
*special order call for availability

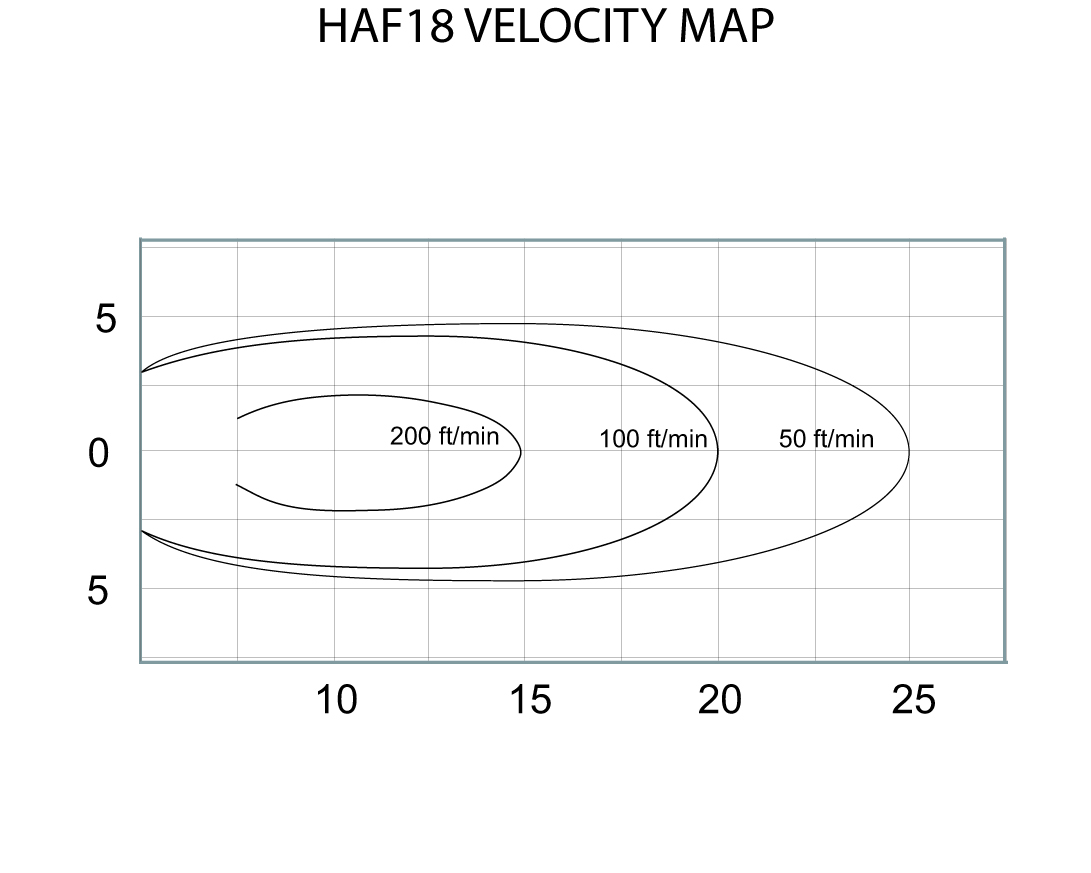

HAF VELOCITY
