Starters and OL Relays

Save time and money.

Instakits starters are completely pre-wired to a universal connector, which allows for quick installation of plug-in options. Choose from a selection of push-button or selector operators and contactor control transformers if required.

Features

Compact space saver design
Easy component access with removable cover
Conduit entry knockouts located on all four sides
Padlock provision
Contact factory for additional options

Instakits Include

Type 1 general purpose enclosures
Maintenance-free TeSys Model D, IEC contactor
Class 10 overload relay with manual reset
Common operator interface kits
Provision for a control transformer kit in same size enclosure

Dimensions


Non-Combination Starter Dimensions (inches/mm)
Non- reversing	A	B	C	D	E	F	G	H	J	K
D09 - D25	6 3/4	10	6 1/4	5 3/8	9	1 - 1 1/4	1/2 - 3/4	-	1 - 1/4	1/2 - 3/4
D09 - D25	172	255	158	136	228	25.4 - 31.7	12.7 - 19	-	25.4 - 6.3	12.7 - 19

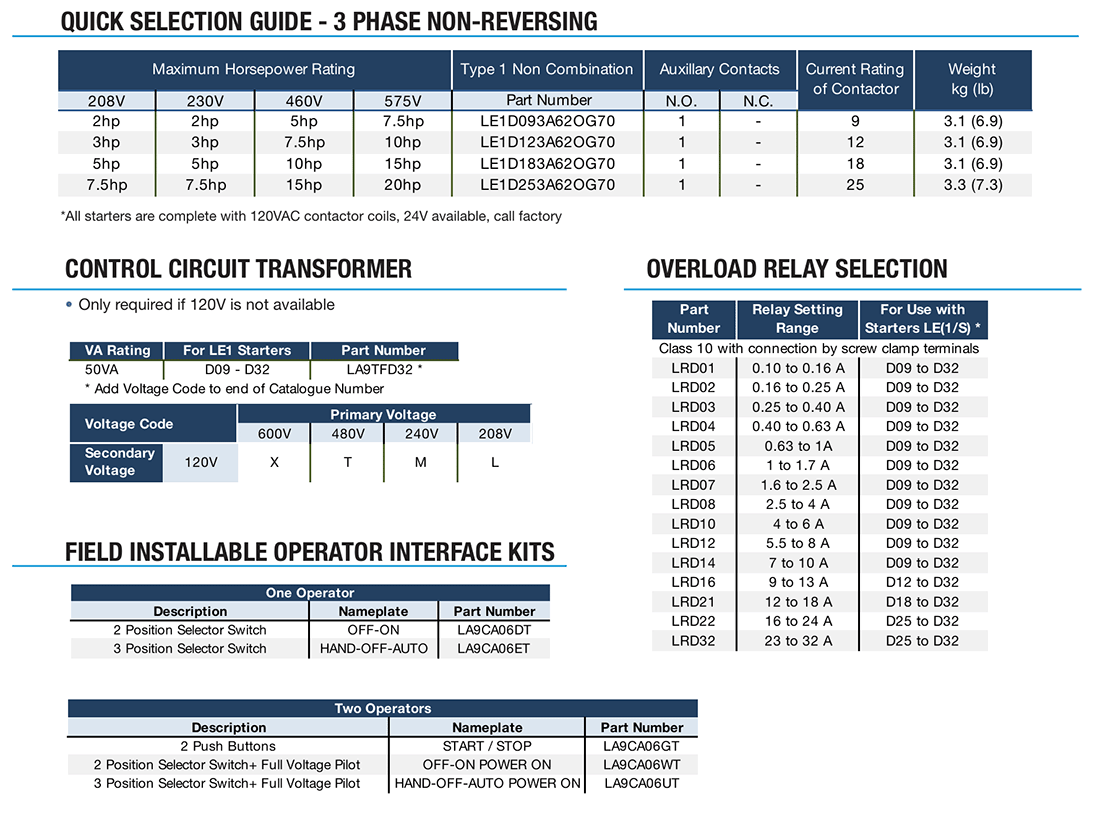

How to select a starter

Choose appropriate horsepower & size from the starter selection chart to get the starter part number.
Based on the current of the motor, choose the overload relay. Use the chart below if you do not know your actual current.
The contactor runs off of 120V by default. If you do not have a 120V circuit, choose a control transformer based on whatever voltage your motor is down to 120V. If you do have 120V available, you don’t need this part. (24V control voltage is an option but starter # changes, call factory)
Determine how the motor is going to start and stop. If it’s being automatically controlled by something external sending the start and stop signals you do not need an operator interface. If it is going to be manually turned on and off you can choose from the operator interface options. Usually start/stop push buttons are the most common, followed by the two position selector (they both do the same job. It is just preference). The hand/off/auto are for when you are using automatic control but also need an override to turn the starter on locally.

3 Phase Non-Reversing
Maximum Horsepower Rating				Type 1 Non Combination	Auxillary Contacts		Current Rating of Contactor	Weight kg (lb)
Maximum Horsepower Rating				Type 1 Non Combination	Auxillary Contacts
208V	230V	460V	575V	Part Number	N.O.	N.C.
2hp	2hp	5hp	7.5hp	LE1D093A62OG70	1	-	9	3.1 (6.9)
3hp	3hp	7.5hp	10hp	LE1D123A62OG70	1	-	12	3.1 (6.9)
5hp	5hp	10hp	15hp	LE1D183A62OG70	1	-	18	3.1 (6.9)
7.5hp	7.5hp	15hp	20hp	LE1D253A62OG70	1	-	25	3.3 (7.3)

Horsepower	AC Induction Motors
	Three Phase
	200V @ 60Hz	230V @ 60Hz	460V @ 60Hz	575V @ 60Hz
	200V @ 60Hz	230V @ 60Hz	460V @ 60Hz	575V @ 60Hz
1/6	-	-	-	-
1/4	-	-	-	-
1/3	-	-	-	-
1/2	2.5	2.2	1.1	0.9
3/4	3.7	3.2	1.6	1.3
1	4.8	4.2	2.1	1.7
1 1/2	6.9	6.0	3.0	2.4
2	7.8	6.8	3.4	2.7
3	11.0	9.6	4.8	3.9
5	17.5	15.2	7.6	6.1
7 1/2	25.3	22.0	11.0	9.0
10	32.2	28.0	14.0	11.0
15	48.3	42.0	21.0	17.0
20	62.1	54.0	27.0	22.0
25	78.2	68.0	34.0	27.0
