Replacement Parts for BTA/WTA/HTA Series Belt Drive Tube Axial Fans

Back to Replacement Parts List

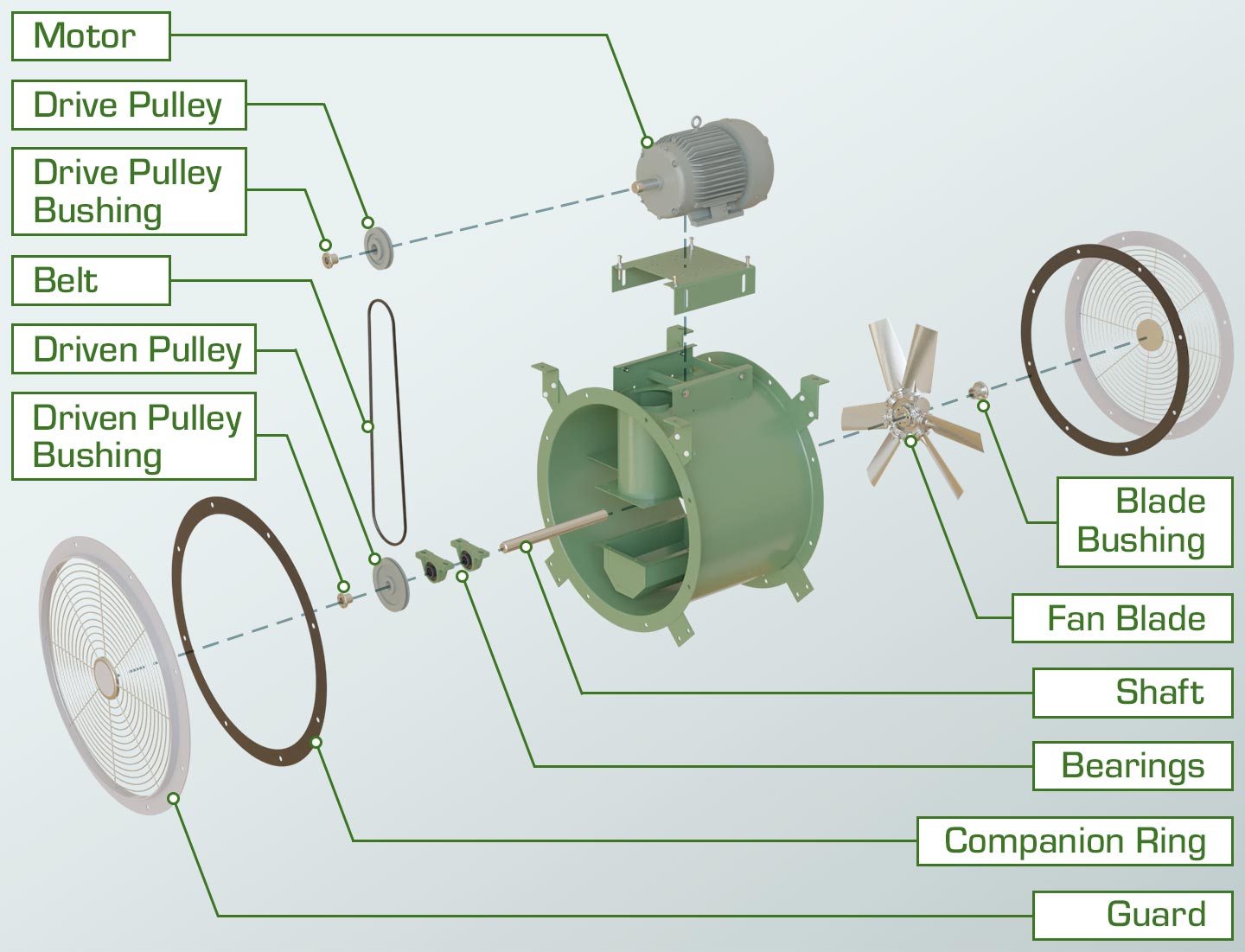

Exploded view of a belt drive tube axial fan with motor, drive pulley, drive pulley bushing, belt, driven pulley, driven pulley bushing, blade bushing, fan blade, shaft, bearings, companion ring and guard.

For WTA and HTA models, replace BTA in the model # column

Model #
Motor Part #
BTA12T10075A
1M113-C
BTA12T30075AM
3M213-V
BTA12T30075AP
3M513
BTA12T10075B
1M113-C
BTA12T30075BM
3M213-V
BTA12T30075BP
3M513
BTA12T10075
1M133
BTA12T30075M
3M233C
BTA12T30075P
3M533C
BTA12T10200
1M136
BTA12T30200M
3M236
BTA12T30200P
3M536
Model #
Motor Part #
BTA15T10075A
1M113-C
BTA15T30075AM
3M213-V
BTA15T30075AP
3M513
BTA15T10075B
1M113-C
BTA15T30075BM
3M213-V
BTA15T30075BP
3M513
BTA15T10075
1M113-C
BTA15T30075M
3M213-V
BTA15T30075P
3M513
BTA15T10100
1M114-C
BTA15T30100M
3M214-V
BTA15T30100P
3M514
BTA15T10150
1M135
BTA15T30150M
3M235
BTA15T30150P
3M535
Model #
Motor Part #
BTA18T10075A
1M113-C
BTA18T30075AM
3M213-V
BTA18T30075AP
3M513
BTA18T10075B
1M113-C
BTA18T30075BM
3M213-V
BTA18T30075BP
3M513
BTA18T10100
1M114-C
BTA18T30100M
3M214-V
BTA18T30100P
3M514
BTA18T10150
1M115-C
BTA18T30150M
3M215-V
BTA18T30150P
3M515
BTA18T10200
1M116-C
BTA18T30200M
3M216-V
BTA18T30200P
3M516
Model #
Motor Part #
BTA24T10075
1M113-C
BTA24T30075M
3M213-V
BTA24T30075P
3M513
BTA24T10100
1M114-C
BTA24T30100M
3M214-V
BTA24T30100P
3M514
BTA24T10150
1M115-C
BTA24T30150M
3M215-V
BTA24T30150P
3M515
BTA24T10200
1M116-C
BTA24T30200M
3M216-V
BTA24T30200P
3M516
BTA24T10300
1M117-C
BTA24T30300M
3M217-V
BTA24T30300P
3M517
Model #
Motor Part #
BTA30T10100
1M114-C
BTA30T30100M
3M214-V
BTA30T30100P
3M514
BTA30T10150
1M115-C
BTA30T30150M
3M215-V
BTA30T30150P
3M515
BTA30T10200
1M116-C
BTA30T30200M
3M216-V
BTA30T30200P
3M516
BTA30T10300
1M117-C
BTA30T30300M
3M217-V
BTA30T30300P
3M517
BTA30T10500
1M118
BTA30T30500M
3M218-V
BTA30T30500P
3M518-V
Model #
Motor Part #
BTA34T10150
1M115-C
BTA34T30150M
3M215-V
BTA34T30150P
3M515
BTA34T10200
1M116-C
BTA34T30200M
3M216-V
BTA34T30200P
3M516
BTA34T10300
1M117-C
BTA34T30300M
3M217-V
BTA34T30300P
3M517
BTA34T10500
1M118
BTA34T30500M
3M218-V
BTA34T30500P
3M518-V
BTA34T10750
1M119
BTA34T30750M
3M219-V
BTA34T30750P
3M519
Model #
Motor Part #
BTA36T10200
1M116-C
BTA36T30200M
3M216-V
BTA36T30200P
3M516
BTA36T10300
1M117-C
BTA36T30300M
3M217-V
BTA36T30300P
3M517
BTA36T10500
1M118
BTA36T30500M
3M218-V
BTA36T30500P
3M518-V
BTA36T10750
1M119
BTA36T30750M
3M219-V
BTA36T30750P
3M519
Model #
Motor Part #
BTA42T10200
1M116-C
BTA42T30200M
3M216-V
BTA42T30200P
3M516
BTA42T10300
1M117-C
BTA42T30300M
3M217-V
BTA42T30300P
3M517
BTA42T10500
1M118
BTA42T30500M
3M218-V
BTA42T30500P
3M518-V
BTA42T10750
1M119
BTA42T30750M
3M219-V
BTA42T30750P
3M519
BTA42T11000
1M120
BTA42T31000M
3M220-V
BTA42T31000P
3M520-V
Model #
Motor Part #
BTA48T10300
1M117-C
BTA48T30300M
3M217-V
BTA48T30300P
3M517
BTA48T10500
1M118
BTA48T30500M
3M218-V
BTA48T30500P
3M518-V
BTA48T10750
1M119
BTA48T30750M
3M219-V
BTA48T30750P
3M519
BTA48T11000
1M120
BTA48T31000M
3M220-V
BTA48T31000P
3M520-V
BTA48T31500M
3M221
BTA48T31500P
3M521
Model #
Motor Part #
BTA54T10500
1M118
BTA54T30500M
3M218-V
BTA54T30500P
3M518
BTA54T10750
1M119
BTA54T30750M
3M219-V
BTA54T30750P
3M519
BTA54T11000
1M120
BTA54T31000M
3M220-V
BTA54T31000P
3M520-V
BTA54T31500M
3M221
BTA54T31500P
3M521
Model #
Motor Part #
BTA60T10750
1M119
BTA60T30750M
3M219-V
BTA60T30750P
3M519
BTA60T11000
1M120
BTA60T31000M
3M220-V
BTA60T31000P
3M520-V
BTA60T31500M
3M221
BTA60T31500P
3M521
BTA60T32000M
3M222
BTA60T32000P
3M522
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA12T10075A
R‑B‑8500439
NA
R‑B‑8500439
NA
BTA12T30075AM
R‑B‑8500439
NA
R‑B‑8500439
NA
BTA12T30075AP
R‑B‑8500439
NA
R‑B‑8500439
NA
BTA12T10075B
R‑B‑P2020-43
NA
R‑B‑P2020-43
NA
BTA12T30075BM
R‑B‑P2020-43
NA
R‑B‑P2020-43
NA
BTA12T30075BP
R‑B‑P2020-43
NA
R‑B‑P2020-43
NA
BTA12T10075
R‑B‑8500433
NA
R‑B‑8500433
NA
BTA12T30075M
R‑B‑8500433
NA
R‑B‑8500433
NA
BTA12T30075P
R‑B‑8500433
NA
R‑B‑8500433
NA
BTA12T10200
R‑B‑8500430
NA
R‑B‑8500430
NA
BTA12T30200M
R‑B‑8500430
NA
R‑B‑8500430
NA
BTA12T30200P
R‑B‑8500430
NA
R‑B‑8500430
NA
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA15T10075A
R‑B‑8500430
NA
R‑B‑8500430
NA
BTA15T30075AM
R‑B‑8500430
NA
R‑B‑8500430
NA
BTA15T30075AP
R‑B‑8500430
NA
R‑B‑8500430
NA
BTA15T10075B
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA15T30075BM
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA15T30075BP
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA15T10075
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA15T30075M
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA15T30075P
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA15T10100
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA15T30100M
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA15T30100P
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA15T10150
R‑B‑8500437
NA
R‑B‑8500437
NA
BTA15T30150M
R‑B‑8500436
R‑B‑8500249
R‑B‑8500436
R‑B‑8500249
BTA15T30150P
R‑B‑PUHA3.4x7/8
NA
R‑B‑PUHA3.4x7/8
NA
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA18T10075A
R‑B‑8500430
NA
R‑B‑8500430
NA
BTA18T30075AM
R‑B‑8500430
NA
R‑B‑8500430
NA
BTA18T30075AP
R‑B‑8500430
NA
R‑B‑8500430
NA
BTA18T10075B
R‑B‑8500437
NA
R‑B‑8500437
NA
BTA18T30075BM
R‑B‑8500437
NA
R‑B‑8500437
NA
BTA18T30075BP
R‑B‑8500437
NA
R‑B‑8500437
NA
BTA18T10100
R‑B‑8500437
NA
R‑B‑8500437
NA
BTA18T30100M
R‑B‑8500437
NA
R‑B‑8500437
NA
BTA18T30100P
R‑B‑8500437
NA
R‑B‑8500437
NA
BTA18T10150
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA18T30150M
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA18T30150P
R‑B‑8500438
R‑B‑8500249
R‑B‑8500438
R‑B‑8500249
BTA18T10200
R‑B‑8500423
R‑B‑8500249
R‑B‑8500423
R‑B‑8500249
BTA18T30200M
R‑B‑8500423
R‑B‑8500249
R‑B‑8500423
R‑B‑8500249
BTA18T30200P
R‑B‑8500423
R‑B‑8500249
R‑B‑8500423
R‑B‑8500249
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA24T10075
R‑B‑8500000
R‑B‑8500249
R‑B‑8500000
R‑B‑8500249
BTA24T30075M
R‑B‑8500000
R‑B‑8500249
R‑B‑8500000
R‑B‑8500249
BTA24T30075P
R‑B‑8500000
R‑B‑8500249
R‑B‑8500000
R‑B‑8500249
BTA24T10100
R‑B‑8500465
R‑B‑8500249
R‑B‑8500465
R‑B‑8500249
BTA24T30100M
R‑B‑8500466
R‑B‑8500249
R‑B‑8500466
R‑B‑8500249
BTA24T30100P
R‑B‑8500466
R‑B‑8500249
R‑B‑8500466
R‑B‑8500249
BTA24T10150
R‑B‑8500001
R‑B‑8500249
R‑B‑8500001
R‑B‑8500249
BTA24T30150M
R‑B‑8500001
R‑B‑8500249
R‑B‑8500001
R‑B‑8500249
BTA24T30150P
R‑B‑8500001
R‑B‑8500249
R‑B‑8500001
R‑B‑8500249
BTA24T10200
R‑B‑PUHB4.4T
R‑B‑8500249
R‑B‑PUHB4.4T
R‑B‑8500249
BTA24T30200M
R‑B‑PUHB4.4T
R‑B‑8500249
R‑B‑PUHB4.4T
R‑B‑8500249
BTA24T30200P
R‑B‑PUHB4.4T
R‑B‑8500249
R‑B‑PUHB4.4T
R‑B‑8500249
BTA24T10300
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
BTA24T30300M
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
BTA24T30300P
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA30T10100
R‑B‑8500464
R‑B‑8500249
R‑B‑8500464
R‑B‑8500249
BTA30T30100M
R‑B‑8500464
R‑B‑8500249
R‑B‑8500464
R‑B‑8500249
BTA30T30100P
R‑B‑8500464
R‑B‑8500249
R‑B‑8500464
R‑B‑8500249
BTA30T10150
R‑B‑8500000
R‑B‑8500249
R‑B‑8500000
R‑B‑8500249
BTA30T30150M
R‑B‑8500000
R‑B‑8500249
R‑B‑8500000
R‑B‑8500249
BTA30T30150P
R‑B‑8500000
R‑B‑8500249
R‑B‑8500000
R‑B‑8500249
BTA30T10200
R‑B‑8500000
R‑B‑8500249
R‑B‑8500000
R‑B‑8500249
BTA30T30200M
R‑B‑PUHB4.4T
R‑B‑8500249
R‑B‑PUHB4.4T
R‑B‑8500249
BTA30T30200P
R‑B‑PUHB4.4T
R‑B‑8500249
R‑B‑PUHB4.4T
R‑B‑8500249
BTA30T10300
R‑B‑PUHB4.4T
R‑B‑8500244
R‑B‑PUHB4.4T
R‑B‑8500244
BTA30T30300M
R‑B‑PUHB4.4T
R‑B‑8500244
R‑B‑PUHB4.4T
R‑B‑8500244
BTA30T30300P
R‑B‑8500465
R‑B‑8500244
R‑B‑8500465
R‑B‑8500244
BTA30T10500
R‑B‑8500001
R‑B‑8500244
R‑B‑8500001
R‑B‑8500244
BTA30T30500M
R‑B‑8500001
R‑B‑8500244
R‑B‑8500001
R‑B‑8500244
BTA30T30500P
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA34T10150
R‑B‑8500454
R‑B‑8500249
R‑B‑8500454
R‑B‑8500249
BTA34T30150M
R‑B‑8500454
R‑B‑8500249
R‑B‑8500454
R‑B‑8500249
BTA34T30150P
R‑B‑8500454
R‑B‑8500249
R‑B‑8500454
R‑B‑8500249
BTA34T10200
R‑B‑8500465
R‑B‑8500249
R‑B‑8500465
R‑B‑8500249
BTA34T30200M
R‑B‑8500465
R‑B‑8500249
R‑B‑8500465
R‑B‑8500249
BTA34T30200P
R‑B‑8500465
R‑B‑8500249
R‑B‑8500465
R‑B‑8500249
BTA34T10300
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
BTA34T30300M
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
BTA34T30300P
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
BTA34T10500
R‑B‑8500000
R‑B‑8500244
R‑B‑8500000
R‑B‑8500244
BTA34T30500M
R‑B‑8500000
R‑B‑8500244
R‑B‑8500000
R‑B‑8500244
BTA34T30500P
R‑B‑8500000
R‑B‑8500244
R‑B‑8500000
R‑B‑8500244
BTA34T10750
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA34T30750M
R‑B‑8500398
NA
R‑B‑8500398
NA
BTA34T30750P
R‑B‑8500407
NA
R‑B‑8500407
NA
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA36T10200
R‑B‑8500454
R‑B‑8500249
R‑B‑8500454
R‑B‑8500249
BTA36T30200M
R‑B‑8500454
R‑B‑8500249
R‑B‑8500454
R‑B‑8500249
BTA36T30200P
R‑B‑8500454
R‑B‑8500249
R‑B‑8500454
R‑B‑8500249
BTA36T10300
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
BTA36T30300M
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
BTA36T30300P
R‑B‑8500454
R‑B‑8500244
R‑B‑8500454
R‑B‑8500244
BTA36T10500
R‑B‑8500403
R‑B‑8500244
R‑B‑8500403
R‑B‑8500244
BTA36T30500M
R‑B‑8500403
R‑B‑8500244
R‑B‑8500403
R‑B‑8500244
BTA36T30500P
R‑B‑8500403
R‑B‑8500244
R‑B‑8500403
R‑B‑8500244
BTA36T10750
R‑B‑8500407
NA
R‑B‑8500407
NA
BTA36T30750M
R‑B‑8500407
NA
R‑B‑8500407
NA
BTA36T30750P
R‑B‑8500407
NA
R‑B‑8500407
NA
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA42T10200
R‑B‑8500454
R‑B‑8500249
R‑B‑8500454
R‑B‑8500249
BTA42T30200M
R‑B‑8500454
R‑B‑8500249
R‑B‑8500454
R‑B‑8500249
BTA42T30200P
R‑B‑8500454
R‑B‑8500249
R‑B‑8500454
R‑B‑8500249
BTA42T10300
R‑B‑8500406
R‑B‑8500244
R‑B‑8500406
R‑B‑8500244
BTA42T30300M
R‑B‑8500403
R‑B‑8500244
R‑B‑8500403
R‑B‑8500244
BTA42T30300P
R‑B‑8500403
R‑B‑8500244
R‑B‑8500403
R‑B‑8500244
BTA42T10500
R‑B‑8500404
R‑B‑8500244
R‑B‑8500404
R‑B‑8500244
BTA42T30500M
R‑B‑8500404
R‑B‑8500244
R‑B‑8500404
R‑B‑8500244
BTA42T30500P
R‑B‑8500404
R‑B‑8500244
R‑B‑8500404
R‑B‑8500244
BTA42T10750
R‑B‑8500406
NA
R‑B‑8500406
NA
BTA42T30750M
R‑B‑8500406
NA
R‑B‑8500406
NA
BTA42T30750P
R‑B‑8500406
NA
R‑B‑8500406
NA
BTA42T11000
R‑B‑8500411
NA
R‑B‑8500411
NA
BTA42T31000M
R‑B‑8500411
NA
R‑B‑8500411
NA
BTA42T31000P
R‑B‑8500411
NA
R‑B‑8500411
NA
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA48T10300
R‑B‑8500405
R‑B‑8500244
R‑B‑8500405
R‑B‑8500244
BTA48T30300M
R‑B‑8500405
R‑B‑8500244
R‑B‑8500405
R‑B‑8500244
BTA48T30300P
R‑B‑8500405
R‑B‑8500244
R‑B‑8500405
R‑B‑8500244
BTA48T10500
R‑B‑8500407
R‑B‑8500244
R‑B‑8500407
R‑B‑8500244
BTA48T30500M
R‑B‑8500407
R‑B‑8500244
R‑B‑8500407
R‑B‑8500244
BTA48T30500P
R‑B‑8500407
R‑B‑8500244
R‑B‑8500407
R‑B‑8500244
BTA48T10750
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA48T30750M
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA48T30750P
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA48T11000
R‑B‑8500409
NA
R‑B‑8500409
NA
BTA48T31000M
R‑B‑8500409
NA
R‑B‑8500409
NA
BTA48T31000P
R‑B‑8500409
NA
R‑B‑8500409
NA
BTA48T31500M
R‑B‑8500331
R‑B‑8500254
R‑B‑8500331
R‑B‑8500254
BTA48T31500P
R‑B‑8500331
R‑B‑8500254
R‑B‑8500331
R‑B‑8500254
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA54T10500
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA54T30500M
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA54T30500P
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA54T10750
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA54T30750M
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA54T30750P
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA54T11000
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA54T31000M
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA54T31000P
R‑B‑8500408
NA
R‑B‑8500408
NA
BTA54T31500M
R‑B‑8500327
R‑B‑8500254
R‑B‑8500327
R‑B‑8500254
BTA54T31500P
R‑B‑8500327
R‑B‑8500254
R‑B‑8500327
R‑B‑8500254
Model #
Drive Pulley Part #
Bushing Part #
Drive Pulley Part #
Bushing Part #
BTA60T10750
R‑B‑8500406
NA
R‑B‑8500406
NA
BTA60T30750M
R‑B‑8500406
NA
R‑B‑8500406
NA
BTA60T30750P
R‑B‑8500406
NA
R‑B‑8500406
NA
BTA60T11000
R‑B‑8500399
NA
R‑B‑8500399
NA
BTA60T31000M
R‑B‑8500399
NA
R‑B‑8500399
NA
BTA60T31000P
R‑B‑8500399
NA
R‑B‑8500399
NA
BTA60T31500M
R‑B‑8500327
R‑B‑8500254
R‑B‑8500327
R‑B‑8500254
BTA60T31500P
R‑B‑8500327
R‑B‑8500254
R‑B‑8500327
R‑B‑8500254
BTA60T32000M
R‑B‑8500332
R‑B‑8500254
R‑B‑8500332
R‑B‑8500254
BTA60T32000P
R‑B‑8500332
R‑B‑8500254
R‑B‑8500332
R‑B‑8500254
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA12T10075A
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA12T30075AM
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA12T30075AP
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA12T10075B
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA12T30075BM
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA12T30075BP
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA12T10075
R‑B‑PUHA3.2X3/4
NA
R‑B‑PUHA3.2X3/4
NA
BTA12T30075M
R‑B‑PUHA3.2X3/4
NA
R‑B‑PUHA3.2X3/4
NA
BTA12T30075P
R‑B‑PUHA3.2X3/4
NA
R‑B‑PUHA3.2X3/4
NA
BTA12T10200
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA12T30200M
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA12T30200P
R‑B‑8500428
NA
R‑B‑8500428
NA
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA15T10075A
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA15T30075AM
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA15T30075AP
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA15T10075B
R‑B‑PUHA3.2X3/4
NA
R‑B‑PUHA3.2X3/4
NA
BTA15T30075BM
R‑B‑PUHA3.2X3/4
NA
R‑B‑PUHA3.2X3/4
NA
BTA15T30075BP
R‑B‑PUHA3.2X3/4
NA
R‑B‑PUHA3.2X3/4
NA
BTA15T10075
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA15T30075M
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA15T30075P
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA15T10100
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA15T30100M
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA15T30100P
R‑B‑8500428
NA
R‑B‑8500428
NA
BTA15T10150
R‑B‑8500100
NA
R‑B‑8500100
NA
BTA15T30150M
R‑B‑8500441
R‑B‑8500062
R‑B‑8500441
R‑B‑8500062
BTA15T30150P
R‑B‑8500100
NA
R‑B‑8500100
NA
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA18T10075A
R‑B‑8500434
R‑B‑8500063
R‑B‑8500434
R‑B‑8500063
BTA18T30075AM
R‑B‑8500434
R‑B‑8500063
R‑B‑8500434
R‑B‑8500063
BTA18T30075AP
R‑B‑8500434
R‑B‑8500063
R‑B‑8500434
R‑B‑8500063
BTA18T10075B
R‑B‑8500436
R‑B‑8500063
R‑B‑8500436
R‑B‑8500063
BTA18T30075BM
R‑B‑8500436
R‑B‑8500063
R‑B‑8500436
R‑B‑8500063
BTA18T30075BP
R‑B‑8500436
R‑B‑8500063
R‑B‑8500436
R‑B‑8500063
BTA18T10100
R‑B‑8500434
R‑B‑8500063
R‑B‑8500434
R‑B‑8500063
BTA18T30100M
R‑B‑8500434
R‑B‑8500063
R‑B‑8500434
R‑B‑8500063
BTA18T30100P
R‑B‑8500434
R‑B‑8500063
R‑B‑8500434
R‑B‑8500063
BTA18T10150
R‑B‑8500436
R‑B‑8500063
R‑B‑8500436
R‑B‑8500063
BTA18T30150M
R‑B‑8500436
R‑B‑8500063
R‑B‑8500436
R‑B‑8500063
BTA18T30150P
R‑B‑8500102
R‑B‑8500063
R‑B‑8500102
R‑B‑8500063
BTA18T10200
R‑B‑8500419
R‑B‑8500063
R‑B‑8500419
R‑B‑8500063
BTA18T30200M
R‑B‑8500419
R‑B‑8500063
R‑B‑8500419
R‑B‑8500063
BTA18T30200P
R‑B‑8500419
R‑B‑8500063
R‑B‑8500419
R‑B‑8500063
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA24T10075
R‑B‑8500002
R‑B‑8500064
R‑B‑8500002
R‑B‑8500064
BTA24T30075M
R‑B‑8500002
R‑B‑8500087
R‑B‑8500002
R‑B‑8500087
BTA24T30075P
R‑B‑8500002
R‑B‑8500087
R‑B‑8500002
R‑B‑8500087
BTA24T10100
R‑B‑8500002
NA
R‑B‑8500002
NA
BTA24T30100M
R‑B‑8500002
NA
R‑B‑8500002
NA
BTA24T30100P
R‑B‑8500002
NA
R‑B‑8500002
NA
BTA24T10150
R‑B‑8500002
NA
R‑B‑8500002
NA
BTA24T30150M
R‑B‑8500002
NA
R‑B‑8500002
NA
BTA24T30150P
R‑B‑8500002
NA
R‑B‑8500002
NA
BTA24T10200
R‑B‑8500467
NA
R‑B‑8500467
NA
BTA24T30200M
R‑B‑8500467
NA
R‑B‑8500467
NA
BTA24T30200P
R‑B‑8500467
NA
R‑B‑8500467
NA
BTA24T10300
R‑B‑8500465
NA
R‑B‑8500465
NA
BTA24T30300M
R‑B‑8500465
NA
R‑B‑8500465
NA
BTA24T30300P
R‑B‑8500465
NA
R‑B‑8500465
NA
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA30T10100
R‑B‑PUHB5.9T
R‑B‑8500065
R‑B‑PUHB5.9T
R‑B‑8500065
BTA30T30100M
R‑B‑PUHB5.9T
R‑B‑8500065
R‑B‑PUHB5.9T
R‑B‑8500065
BTA30T30100P
R‑B‑PUHB5.9T
R‑B‑8500065
R‑B‑PUHB5.9T
R‑B‑8500065
BTA30T10150
R‑B‑PUHB6.2T
R‑B‑8500065
R‑B‑PUHB6.2T
R‑B‑8500065
BTA30T30150M
R‑B‑PUHB6.2T
R‑B‑8500065
R‑B‑PUHB6.2T
R‑B‑8500065
BTA30T30150P
R‑B‑PUHB6.2T
R‑B‑8500065
R‑B‑PUHB6.2T
R‑B‑8500065
BTA30T10200
R‑B‑PUHB6.2T
R‑B‑8500065
R‑B‑PUHB6.2T
R‑B‑8500065
BTA30T30200M
R‑B‑PUHB6.4T
R‑B‑8500065
R‑B‑PUHB6.4T
R‑B‑8500065
BTA30T30200P
R‑B‑PUHB6.4T
R‑B‑8500065
R‑B‑PUHB6.4T
R‑B‑8500065
BTA30T10300
R‑B‑8500002
R‑B‑8500065
R‑B‑8500002
R‑B‑8500065
BTA30T30300M
R‑B‑8500002
R‑B‑8500065
R‑B‑8500002
R‑B‑8500065
BTA30T30300P
R‑B‑8500001
R‑B‑8500065
R‑B‑8500001
R‑B‑8500065
BTA30T10500
R‑B‑8500467
R‑B‑8500065
R‑B‑8500467
R‑B‑8500065
BTA30T30500M
R‑B‑8500467
R‑B‑8500065
R‑B‑8500467
R‑B‑8500065
BTA30T30500P
R‑B‑8500465
R‑B‑8500065
R‑B‑8500465
R‑B‑8500065
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA34T10150
R‑B‑8500003
R‑B‑8500065
R‑B‑8500003
R‑B‑8500065
BTA34T30150M
R‑B‑8500003
R‑B‑8500065
R‑B‑8500003
R‑B‑8500065
BTA34T30150P
R‑B‑8500003
R‑B‑8500065
R‑B‑8500003
R‑B‑8500065
BTA34T10200
R‑B‑8500003
R‑B‑8500065
R‑B‑8500003
R‑B‑8500065
BTA34T30200M
R‑B‑8500003
R‑B‑8500065
R‑B‑8500003
R‑B‑8500065
BTA34T30200P
R‑B‑8500003
R‑B‑8500065
R‑B‑8500003
R‑B‑8500065
BTA34T10300
R‑B‑8500002
R‑B‑8500065
R‑B‑8500002
R‑B‑8500065
BTA34T30300M
R‑B‑8500002
R‑B‑8500065
R‑B‑8500002
R‑B‑8500065
BTA34T30300P
R‑B‑8500002
R‑B‑8500065
R‑B‑8500002
R‑B‑8500065
BTA34T10500
R‑B‑8500468
R‑B‑8500065
R‑B‑8500468
R‑B‑8500065
BTA34T30500M
R‑B‑8500468
R‑B‑8500065
R‑B‑8500468
R‑B‑8500065
BTA34T30500P
R‑B‑8500468
R‑B‑8500065
R‑B‑8500468
R‑B‑8500065
BTA34T10750
R‑B‑8500409
R‑B‑8500065
R‑B‑8500409
R‑B‑8500065
BTA34T30750M
R‑B‑8500409
R‑B‑8500065
R‑B‑8500409
R‑B‑8500065
BTA34T30750P
R‑B‑8500409
R‑B‑8500065
R‑B‑8500409
R‑B‑8500065
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA36T10200
R‑B‑8500003
R‑B‑8500065
R‑B‑8500003
R‑B‑8500065
BTA36T30200M
R‑B‑8500003
R‑B‑8500065
R‑B‑8500003
R‑B‑8500065
BTA36T30200P
R‑B‑8500003
R‑B‑8500065
R‑B‑8500003
R‑B‑8500065
BTA36T10300
R‑B‑PUHB5.9T
R‑B‑8500065
R‑B‑PUHB5.9T
R‑B‑8500065
BTA36T30300M
R‑B‑PUHB5.9T
R‑B‑8500065
R‑B‑PUHB5.9T
R‑B‑8500065
BTA36T30300P
R‑B‑PUHB5.9T
R‑B‑8500065
R‑B‑PUHB5.9T
R‑B‑8500065
BTA36T10500
R‑B‑8500408
R‑B‑8500065
R‑B‑8500408
R‑B‑8500065
BTA36T30500M
R‑B‑8500408
R‑B‑8500065
R‑B‑8500408
R‑B‑8500065
BTA36T30500P
R‑B‑8500408
R‑B‑8500065
R‑B‑8500408
R‑B‑8500065
BTA36T10750
R‑B‑8500409
R‑B‑8500065
R‑B‑8500409
R‑B‑8500065
BTA36T30750M
R‑B‑8500409
R‑B‑8500065
R‑B‑8500409
R‑B‑8500065
BTA36T30750P
R‑B‑8500409
R‑B‑8500065
R‑B‑8500409
R‑B‑8500065
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA42T10200
R‑B‑8500004
R‑B‑8500065
R‑B‑8500004
R‑B‑8500065
BTA42T30200M
R‑B‑8500004
R‑B‑8500065
R‑B‑8500004
R‑B‑8500065
BTA42T30200P
R‑B‑8500004
R‑B‑8500065
R‑B‑8500004
R‑B‑8500065
BTA42T10300
R‑B‑8500011
R‑B‑8500065
R‑B‑8500011
R‑B‑8500065
BTA42T30300M
R‑B‑8500014
R‑B‑8500065
R‑B‑8500014
R‑B‑8500065
BTA42T30300P
R‑B‑8500014
R‑B‑8500065
R‑B‑8500014
R‑B‑8500065
BTA42T10500
R‑B‑8500012
R‑B‑8500065
R‑B‑8500012
R‑B‑8500065
BTA42T30500M
R‑B‑8500012
R‑B‑8500065
R‑B‑8500012
R‑B‑8500065
BTA42T30500P
R‑B‑8500012
R‑B‑8500065
R‑B‑8500012
R‑B‑8500065
BTA42T10750
R‑B‑8500011
R‑B‑8500065
R‑B‑8500011
R‑B‑8500065
BTA42T30750M
R‑B‑8500011
R‑B‑8500065
R‑B‑8500011
R‑B‑8500065
BTA42T30750P
R‑B‑8500011
R‑B‑8500065
R‑B‑8500011
R‑B‑8500065
BTA42T11000
R‑B‑8500016
R‑B‑8500065
R‑B‑8500016
R‑B‑8500065
BTA42T31000M
R‑B‑8500016
R‑B‑8500065
R‑B‑8500016
R‑B‑8500065
BTA42T31000P
R‑B‑8500016
R‑B‑8500065
R‑B‑8500016
R‑B‑8500065
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA48T10300
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T30300M
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T30300P
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T10500
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T30500M
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T30500P
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T10750
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T30750M
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T30750P
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T11000
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T31000M
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T31000P
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T31500M
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA48T31500P
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA54T10500
R‑B‑8500322
R‑B‑8500251
R‑B‑8500322
R‑B‑8500251
BTA54T30500M
R‑B‑8500322
R‑B‑8500251
R‑B‑8500322
R‑B‑8500251
BTA54T30500P
R‑B‑8500322
R‑B‑8500251
R‑B‑8500322
R‑B‑8500251
BTA54T10750
R‑B‑8500340
R‑B‑8500251
R‑B‑8500340
R‑B‑8500251
BTA54T30750M
R‑B‑8500340
R‑B‑8500251
R‑B‑8500340
R‑B‑8500251
BTA54T30750P
R‑B‑8500340
R‑B‑8500251
R‑B‑8500340
R‑B‑8500251
BTA54T11000
R‑B‑8500339
R‑B‑8500251
R‑B‑8500339
R‑B‑8500251
BTA54T31000M
R‑B‑8500339
R‑B‑8500251
R‑B‑8500339
R‑B‑8500251
BTA54T31000P
R‑B‑8500339
R‑B‑8500251
R‑B‑8500339
R‑B‑8500251
BTA54T31500M
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
BTA54T31500P
R‑B‑8500338
R‑B‑8500251
R‑B‑8500338
R‑B‑8500251
Model #
Driven Pulley Part #
Bushing Part #
Driven Pulley Part #
Bushing Part #
BTA60T10750
R‑B‑8500340
R‑B‑8500251
R‑B‑8500340
R‑B‑8500251
BTA60T30750M
R‑B‑8500340
R‑B‑8500251
R‑B‑8500340
R‑B‑8500251
BTA60T30750P
R‑B‑8500340
R‑B‑8500251
R‑B‑8500340
R‑B‑8500251
BTA60T11000
R‑B‑8500322
R‑B‑8500251
R‑B‑8500322
R‑B‑8500251
BTA60T31000M
R‑B‑8500322
R‑B‑8500251
R‑B‑8500322
R‑B‑8500251
BTA60T31000P
R‑B‑8500322
R‑B‑8500251
R‑B‑8500322
R‑B‑8500251
BTA60T31500M
R‑B‑8500340
R‑B‑8500251
R‑B‑8500340
R‑B‑8500251
BTA60T31500P
R‑B‑8500340
R‑B‑8500251
R‑B‑8500340
R‑B‑8500251
BTA60T32000M
R‑B‑8500322
R‑B‑8500251
R‑B‑8500322
R‑B‑8500251
BTA60T32000P
R‑B‑8500322
R‑B‑8500251
R‑B‑8500322
R‑B‑8500251
Model #
Belt Part #
BTA12T10075A
R‑B‑8200005
BTA12T30075AM
R‑B‑8200004
BTA12T30075AP
R‑B‑8200004
BTA12T10075B
R‑B‑8200005
BTA12T30075BM
R‑B‑8200005
BTA12T30075BP
R‑B‑8200005
BTA12T10075
R‑B‑8200004
BTA12T30075M
R‑B‑8200004
BTA12T30075P
R‑B‑8200004
BTA12T10200
R‑B‑8200003
BTA12T30200M
R‑B‑8200003
BTA12T30200P
R‑B‑8200003
Model #
Belt Part #
BTA15T10075A
R‑B‑8200007
BTA15T30075AM
R‑B‑8200007
BTA15T30075AP
R‑B‑8200007
BTA15T10075B
R‑B‑8200010
BTA15T30075BM
R‑B‑8200010
BTA15T30075BP
R‑B‑8200010
BTA15T10075
R‑B‑8200009
BTA15T30075M
R‑B‑8200009
BTA15T30075P
R‑B‑8200009
BTA15T10100
R‑B‑8200009
BTA15T30100M
R‑B‑8200009
BTA15T30100P
R‑B‑8200009
BTA15T10150
R‑B‑8200010
BTA15T30150M
R‑B‑8200010
BTA15T30150P
R‑B‑8200010
Model #
Belt Part #
BTA18T10075A
R‑B‑8200012
BTA18T30075AM
R‑B‑8200012
BTA18T30075AP
R‑B‑8200012
BTA18T10075B
R‑B‑8200013
BTA18T30075BM
R‑B‑8200013
BTA18T30075BP
R‑B‑8200013
BTA18T10100
R‑B‑8200013
BTA18T30100M
R‑B‑8200013
BTA18T30100P
R‑B‑8200013
BTA18T10150
R‑B‑8200014
BTA18T30150M
R‑B‑8200014
BTA18T30150P
R‑B‑8200014
BTA18T10200
R‑B‑8200014
BTA18T30200M
R‑B‑8200014
BTA18T30200P
R‑B‑8200014
Model #
Belt Part #
BTA24T10075
R‑B‑8200051
BTA24T30075M
R‑B‑8200051
BTA24T30075P
R‑B‑8200051
BTA24T10100
R‑B‑8200050
BTA24T30100M
R‑B‑8200051
BTA24T30100P
R‑B‑8200051
BTA24T10150
R‑B‑8200052
BTA24T30150M
R‑B‑8200052
BTA24T30150P
R‑B‑8200052
BTA24T10200
R‑B‑8200050
BTA24T30200M
R‑B‑8200050
BTA24T30200P
R‑B‑8200050
BTA24T10300
R‑B‑8200049
BTA24T30300M
R‑B‑8200049
BTA24T30300P
R‑B‑8200049
Model #
Belt Part #
BTA30T10100
R‑B‑8200057
BTA30T30100M
R‑B‑8200057
BTA30T30100P
R‑B‑8200057
BTA30T10150
R‑B‑8200058
BTA30T30150M
R‑B‑8200058
BTA30T30150P
R‑B‑8200058
BTA30T10200
R‑B‑8200058
BTA30T30200M
R‑B‑8200059
BTA30T30200P
R‑B‑8200059
BTA30T10300
R‑B‑8200060
BTA30T30300M
R‑B‑8200060
BTA30T30300P
R‑B‑8200057
BTA30T10500
R‑B‑8200059
BTA30T30500M
R‑B‑8200059
BTA30T30500P
R‑B‑8200056
Model #
Belt Part #
BTA34T10150
R‑B‑8200063
BTA34T30150M
R‑B‑8200063
BTA34T30150P
R‑B‑8200063
BTA34T10200
R‑B‑8200063
BTA34T30200M
R‑B‑8200063
BTA34T30200P
R‑B‑8200063
BTA34T10300
R‑B‑8200063
BTA34T30300M
R‑B‑8200063
BTA34T30300P
R‑B‑8200063
BTA34T10500
R‑B‑8200063
BTA34T30500M
R‑B‑8200063
BTA34T30500P
R‑B‑8200063
BTA34T10750
R‑B‑8200065
BTA34T30750M
R‑B‑8200065
BTA34T30750P
R‑B‑8200065
Model #
Belt Part #
BTA36T10200
R‑B‑8200065
BTA36T30200M
R‑B‑8200065
BTA36T30200P
R‑B‑8200065
BTA36T10300
R‑B‑8200065
BTA36T30300M
R‑B‑8200065
BTA36T30300P
R‑B‑8200065
BTA36T10500
R‑B‑8200063
BTA36T30500M
R‑B‑8200063
BTA36T30500P
R‑B‑8200063
BTA36T10750
R‑B‑8200067
BTA36T30750M
R‑B‑8200067
BTA36T30750P
R‑B‑8200067
Model #
Belt Part #
BTA42T10200
R‑B‑8200072
BTA42T30200M
R‑B‑8200072
BTA42T30200P
R‑B‑8200072
BTA42T10300
R‑B‑8200072
BTA42T30300M
R‑B‑8200072
BTA42T30300P
R‑B‑8200072
BTA42T10500
R‑B‑8200072
BTA42T30500M
R‑B‑8200071
BTA42T30500P
R‑B‑8200071
BTA42T10750
R‑B‑8200073
BTA42T30750M
R‑B‑8200073
BTA42T30750P
R‑B‑8200073
BTA42T11000
R‑B‑8200079
BTA42T31000M
R‑B‑8200079
BTA42T31000P
R‑B‑8200079
Model #
Belt Part #
BTA48T10300
R‑B‑8200082
BTA48T30300M
R‑B‑8200082
BTA48T30300P
R‑B‑8200082
BTA48T10500
R‑B‑8200083
BTA48T30500M
R‑B‑8200083
BTA48T30500P
R‑B‑8200083
BTA48T10750
R‑B‑8200085
BTA48T30750M
R‑B‑8200085
BTA48T30750P
R‑B‑8200085
BTA48T11000
R‑B‑8200086
BTA48T31000M
R‑B‑8200086
BTA48T31000P
R‑B‑8200086
BTA48T31500M
R‑B‑8200089
BTA48T31500P
R‑B‑8200089
Model #
Belt Part #
BTA54T10500
R‑B‑8200095
BTA54T30500M
R‑B‑8200095
BTA54T30500P
R‑B‑8200095
BTA54T10750
R‑B‑8200094
BTA54T30750M
R‑B‑8200094
BTA54T30750P
R‑B‑8200094
BTA54T11000
R‑B‑8200092
BTA54T31000M
R‑B‑8200092
BTA54T31000P
R‑B‑8200092
BTA54T31500M
R‑B‑8200093
BTA54T31500P
R‑B‑8200093
Model #
Belt Part #
BTA60T10750
R‑B‑8200099
BTA60T30750M
R‑B‑8200099
BTA60T30750P
R‑B‑8200099
BTA60T11000
R‑B‑8200101
BTA60T31000M
R‑B‑8200101
BTA60T31000P
R‑B‑8200101
BTA60T31500M
R‑B‑8200101
BTA60T31500P
R‑B‑8200101
BTA60T32000M
R‑B‑BX106
BTA60T32000P
R‑B‑BX106
Fan Size
Shaft Part #
12"
R-3X302-14-P
15"
R-3X302-14-P
18"
R-3X301-14-P
24"
R-3X300-18-P
30"
R-3X306-17-P
34"
R-3X306-21-P
36"
R-3X306-21-P
42"
R-3X306-21-P
48"
R-3X307-24-P
54"
R-2100200
60"
R-2100200
Fan Size
Bearings Part #
12"
R‑B‑8100030
15"
R‑B‑8100030
18"
R‑B‑8100003
24"
R‑B‑8100004
30"
R‑B‑8100005
34"
R‑B‑8100005
36"
R‑B‑8100005
42"
R‑B‑8100005
48"
R‑B‑8100007
54"
R‑B‑8100007
60"
R‑B‑8100007
Fan Size
Fan Blade Part #
12"
R‑B‑7BTA012
15"
R‑B‑7BTA015
18"
R‑B‑7BTA018
24"
R‑B‑7BTA024
30"
R‑B‑7BTA030
34"
R‑B‑7BTA034
36"
R‑B‑7BTA036
42"
R‑B‑7BTA042
48"
R‑B‑7BTA048
54"
R‑B‑7BTA054
60"
R‑B‑7BTA060
Fan Size
Blade Bushing Part #
12"
R‑B‑8500257
15"
R‑B‑8500257
18"
R‑B‑8500201
24"
R‑B‑8500064
30"
R‑B‑8500088
34"
R‑B‑8500088
36"
R‑B‑8500088
42"
R‑B‑8500088
48"
R‑B‑8500074
54"
R‑B‑8500074
60"
R‑B‑8500074
View options & accessories

Back to Replacement Parts List
