Replacement Parts for RB Series Belt Drive Roof Exhausters

Back to Replacement Parts List

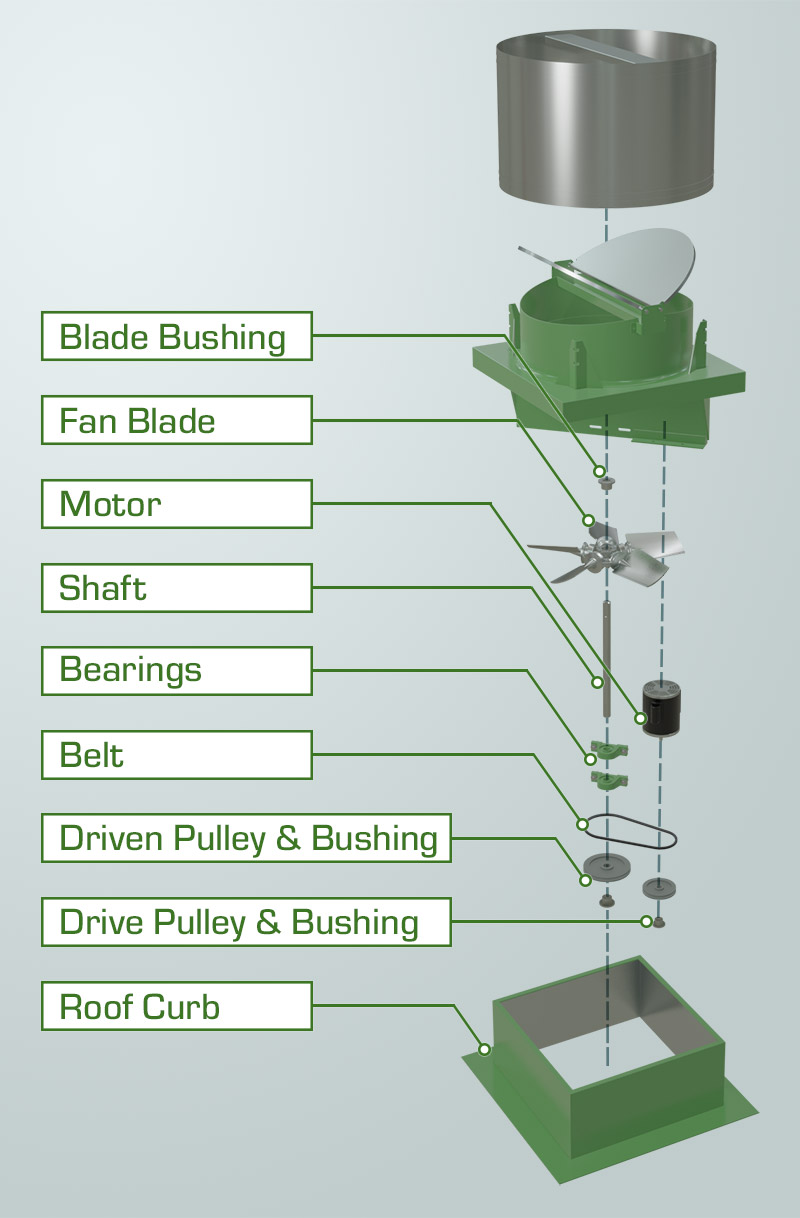

Exploded view of an RB fan with blad bushing, fan blade, motor, shaft, bearings, belt, driven pulley & bushing, drive pulley & bushing, and roof curb.



Model #
Motor Part #
RB24T10075
1M113-C
RB24T30075M
3M213-V
RB24T10100
1M114-C
RB24T30100M
3M214-V
RB24T30100P
3M514
RB24T30200M
3M216-V
RB24T30200P
3M516
Model #
Motor Part #
RB30T10075
1M113-C
RB30T30075M
3M213-V
RB30T30075P
3M513
RB30T10100
1M114-C
RB30T30100M
3M214-V
RB30T30100P
3M514
RB30T10150
1M115-C
RB30T30150M
3M215-V
RB30T30150P
3M515
RB30T10200
1M116-C
RB30T30200M
3M216-V
RB30T30200P
3M516
RB30T10300
1M117-C
RB30T30300M
3M217-V
RB30T30300P
3M517
Model #
Motor Part #
RB36T10100
1M114-C
RB36T30100M
3M214-V
RB36T30100P
3M514
RB36T10150
1M115-C
RB36T30150M
3M215-V
RB36T30150P
3M515
RB36T10200
1M116-C
RB36T30200M
3M216-V
RB36T30200P
3M516
RB36T10300
1M117-C
RB36T30300M
3M217-V
RB36T30300P
3M517
Model #
Motor Part #
RB42T30200M
3M216-V
RB42T30200P
3M516
RB42T30300M
3M217-V
RB42T30300P
3M517
RB42T30500M
3M218-V
RB42T30500P
3M518-V
RB42T30750M
3M219-V
Model #
Motor Part #
RB48T10200
1M116-C
RB48T30200M
3M216-V
RB48T30200P
3M516
RB48T10300
1M117-C
RB48T30300M
3M217-V
RB48T30300P
3M517
RB48T10500
1M118
RB48T30500M
3M218-V
RB48T30500P
3M518-V
RB48T10750
1M119-C
RB48T30750M
3M219-V
RB48T30750P
3M519
Model #
Motor Part #
RB54T30300M
3M217-V
RB54T10500
1M118
RB54T30500M
3M218-V
RB54T30750M
3M219-V
RB54T31000M
3M220-V
Model #
Motor Part #
RB60T10500
1M118
RB60T30500M
3M218-V
RB60T30750M
3M219-V
RB60T30750P
3M519
RB60T31000M
3M220-V
RB60T31000P
3M520-V
RB60T31500M
3M221
RB60T31500P
3M521
Model #
Drive Pulley Part #
Bushing Part #
RB24T10075
R-B-8500439
NA
RB24T30075M
R-B-8500439
NA
RB24T10100
R-B-8500454
R-B-8500249
RB24T30100M
R-B-8500454
R-B-8500249
RB24T30100P
R-B-8500454
R-B-8500249
RB24T30200M
R-B-8500467
R-B-8500249
RB24T30200P
R-B-8500467
R-B-8500249
Model #
Drive Pulley Part #
Bushing Part #
RB30T10075
R-B-8500464
R-B-8500249
RB30T30075M
R-B-8500464
R-B-8500249
RB30T30075P
R-B-8500464
R-B-8500249
RB30T10100
R-B-8500454
R-B-8500249
RB30T30100M
R-B-8500454
R-B-8500249
RB30T30100P
R-B-8500454
R-B-8500249
RB30T10150
R-B-8500454
R-B-8500249
RB30T30150M
R-B-8500454
R-B-8500249
RB30T30150P
R-B-8500454
R-B-8500249
RB30T10200
R-B-8500001
R-B-8500249
RB30T30200M
R-B-8500001
R-B-8500249
RB30T30200P
R-B-8500001
R-B-8500249
RB30T10300
R-B-8500001
R-B-8500244
RB30T30300M
R-B-8500001
R-B-8500244
RB30T30300P
R-B-8500001
R-B-8500244
Model #
Drive Pulley Part #
Bushing Part #
RB36T10100
R-B-8500036
NA
RB36T30100M
R-B-8500036
NA
RB36T30100P
R-B-8500036
NA
RB36T10150
R-B-8500059
NA
RB36T30150M
R-B-8500059
NA
RB36T30150P
R-B-8500059
NA
RB36T10200
R-B-8500466
R-B-8500249
RB36T30200M
R-B-8500466
R-B-8500249
RB36T30200P
R-B-8500466
R-B-8500249
RB36T10300
R-B-8500465
R-B-8500244
RB36T30300M
R-B-8500465
R-B-8500244
RB36T30300P
R-B-8500465
R-B-8500244
Model #
Drive Pulley Part #
Bushing Part #
RB42T30200M
R-B-8500454
R-B-8500249
RB42T30200P
R-B-8500454
R-B-8500249
RB42T30300M
R-B-8500000
R-B-8500244
RB42T30300P
R-B-8500000
R-B-8500244
RB42T30500M
R-B-8500406
R-B-8500244
RB42T30500P
R-B-8500406
R-B-8500244
RB42T30750M
R-B-8500408
R-B-PUTX13/8
Model #
Drive Pulley Part #
Bushing Part #
RB48T10200
R-B-8500454
R-B-8500249
RB48T30200M
R-B-8500454
R-B-8500249
RB48T30200P
R-B-8500454
R-B-8500249
RB48T10300
R-B-8500002
R-B-8500244
RB48T30300M
R-B-8500002
R-B-8500244
RB48T30300P
R-B-8500002
R-B-8500244
RB48T10500
R-B-8500407
R-B-8500244
RB48T30500M
R-B-8500407
R-B-8500244
RB48T30500P
R-B-8500407
R-B-8500244
RB48T10750
R-B-8500399
R-B-PUTX13/8
RB48T30750M
R-B-8500399
R-B-PUTX13/8
RB48T30750P
R-B-8500399
R-B-PUTX13/8
Model #
Drive Pulley Part #
Bushing Part #
RB54T30300M
R-B-PUHB3.1T
R-B-8500244
RB54T10500
R-B-8500408
R-B-8500244
RB54T30500M
R-B-8500408
R-B-8500244
RB54T30750M
R-B-8500414
R-B-PUTX13/8
RB54T31000M
R-B-8500409
R-B-PUTX13/8
Model #
Drive Pulley Part #
Bushing Part #
RB60T10500
R-B-8500405
R-B-8500244
RB60T30500M
R-B-8500405
R-B-8500244
RB60T30750M
R-B-PU2VP65X13/8
NA
RB60T30750P
R-B-PU2VP65X13/8
NA
RB60T31000M
R-B-8500046
NA
RB60T31000P
R-B-8500046
NA
RB60T31500M
R-B-8500048
NA
RB60T31500P
R-B-8500048
NA
Model #
Driven Pulley Part #
Bushing Part #
RB24T10075
R-B-8500449
R-B-8500063
RB24T30075M
R-B-8500449
R-B-8500063
RB24T10100
R-B-8500001
R-B-8500064
RB24T30100M
R-B-8500001
R-B-8500064
RB24T30100P
R-B-8500001
R-B-8500064
RB24T30200M
R-B-8500002
R-B-8500064
RB24T30200P
R-B-8500002
R-B-8500064
Model #
Driven Pulley Part #
Bushing Part #
RB30T10075
R-B-PUHB6.4T
R-B-8500064
RB30T30075M
R-B-PUHB6.4T
R-B-8500064
RB30T30075P
R-B-PUHB6.4T
R-B-8500064
RB30T10100
R-B-PUHB6.2T
R-B-8500064
RB30T30100M
R-B-PUHB6.2T
R-B-8500064
RB30T30100P
R-B-PUHB6.2T
R-B-8500064
RB30T10150
R-B-PUHB5.9T
R-B-8500064
RB30T30150M
R-B-PUHB5.9T
R-B-8500064
RB30T30150P
R-B-PUHB5.9T
R-B-8500064
RB30T10200
R-B-8500003
R-B-8500064
RB30T30200M
R-B-8500003
R-B-8500064
RB30T30200P
R-B-8500003
R-B-8500064
RB30T10300
R-B-8500002
R-B-8500064
RB30T30300M
R-B-8500002
R-B-8500064
RB30T30300P
R-B-8500002
R-B-8500064
Model #
Driven Pulley Part #
Bushing Part #
RB36T10100
R-B-8500007
R-B-8500064
RB36T30100M
R-B-8500007
R-B-8500064
RB36T30100P
R-B-8500007
R-B-8500064
RB36T10150
R-B-8500004
R-B-8500064
RB36T30150M
R-B-8500004
R-B-8500064
RB36T30150P
R-B-8500004
R-B-8500064
RB36T10200
R-B-8500005
R-B-8500064
RB36T30200M
R-B-8500005
R-B-8500064
RB36T30200P
R-B-8500005
R-B-8500064
RB36T10300
R-B-8500003
R-B-8500064
RB36T30300M
R-B-8500003
R-B-8500064
RB36T30300P
R-B-8500003
R-B-8500064
Model #
Driven Pulley Part #
Bushing Part #
RB42T30200M
R-B-8500005
R-B-8500064
RB42T30200P
R-B-8500005
R-B-8500064
RB42T30300M
R-B-8500005
R-B-8500064
RB42T30300P
R-B-8500005
R-B-8500064
RB42T30500M
R-B-8500416
R-B-8500064
RB42T30500P
R-B-8500416
R-B-8500064
RB42T30750M
R-B-8500416
R-B-8500065
Model #
Driven Pulley Part #
Bushing Part #
RB48T10200
R-B-8500007
R-B-8500064
RB48T30200M
R-B-8500007
R-B-8500064
RB48T30200P
R-B-8500007
R-B-8500064
RB48T10300
R-B-8500011
R-B-8500064
RB48T30300M
R-B-8500011
R-B-8500064
RB48T30300P
R-B-8500011
R-B-8500064
RB48T10500
R-B-8500400
R-B-8500064
RB48T30500M
R-B-8500400
R-B-8500064
RB48T30500P
R-B-8500400
R-B-8500064
RB48T10750
R-B-8500400
R-B-8500065
RB48T30750M
R-B-8500400
R-B-8500065
RB48T30750P
R-B-8500400
R-B-8500065
Model #
Driven Pulley Part #
Bushing Part #
RB54T30300M
R-B-8500011
R-B-8500065
RB54T10500
R-B-8500396
R-B-8500065
RB54T30500M
R-B-8500396
R-B-8500065
RB54T30750M
R-B-8500397
R-B-8500065
RB54T31000M
R-B-8500395
R-B-8500065
Model #
Driven Pulley Part #
Bushing Part #
RB60T10500
R-B-8500396
R-B-8500065
RB60T30500M
R-B-8500396
R-B-8500065
RB60T30750M
R-B-8500325
R-B-8500255
RB60T30750P
R-B-8500325
R-B-8500255
RB60T31000M
R-B-8500325
R-B-8500255
RB60T31000P
R-B-8500325
R-B-8500255
RB60T31500M
R-B-8500323
R-B-8500255
RB60T31500P
R-B-8500323
R-B-8500255
Model #
Belt Part #
RB24T10075
R-B-8200007
RB24T30075M
R-B-8200007
RB24T10100
R-B-8200123
RB24T30100M
R-B-8200123
RB24T30100P
R-B-8200123
RB24T30200M
R-B-8200127
RB24T30200P
R-B-8200127
Model #
Belt Part #
RB30T10075
R-B-8200125
RB30T30075M
R-B-8200125
RB30T30075P
R-B-8200125
RB30T10100
R-B-8200124
RB30T30100M
R-B-8200124
RB30T30100P
R-B-8200124
RB30T10150
R-B-8200123
RB30T30150M
R-B-8200123
RB30T30150P
R-B-8200123
RB30T10200
R-B-8200126
RB30T30200M
R-B-8200126
RB30T30200P
R-B-8200126
RB30T10300
R-B-8200127
RB30T30300M
R-B-8200127
RB30T30300P
R-B-8200127
Model #
Belt Part #
RB36T10100
R-B-8200046
RB36T30100M
R-B-8200046
RB36T30100P
R-B-8200046
RB36T10150
R-B-8200040
RB36T30150M
R-B-8200040
RB36T30150P
R-B-8200040
RB36T10200
R-B-8200042
RB36T30200M
R-B-8200042
RB36T30200P
R-B-8200042
RB36T10300
R-B-8200131
RB36T30300M
R-B-8200131
RB36T30300P
R-B-8200131
Model #
Belt Part #
RB42T30200M
R-B-8200046
RB42T30200P
R-B-8200046
RB42T30300M
R-B-8200046
RB42T30300P
R-B-8200046
RB42T30500M
R-B-8200040
RB42T30500P
R-B-8200040
RB42T30750M
R-B-8200046
Model #
Belt Part #
RB48T10200
R-B-8200055
RB48T30200M
R-B-8200055
RB48T30200P
R-B-8200055
RB48T10300
R-B-8200064
RB48T30300M
R-B-8200064
RB48T30300P
R-B-8200064
RB48T10500
R-B-8200052
RB48T30500M
R-B-8200052
RB48T30500P
R-B-8200052
RB48T10750
R-B-8200053
RB48T30750M
R-B-8200053
RB48T30750P
R-B-8200053
Model #
Belt Part #
RB54T30300M
R-B-8200065
RB54T10500
R-B-8200063
RB54T30500M
R-B-8200063
RB54T30750M
R-B-8200071
RB54T31000M
R-B-8200061
Model #
Belt Part #
RB60T10500
R-B-8200067
RB60T30500M
R-B-8200067
RB60T30750M
R-B-8200071
RB60T30750P
R-B-8200071
RB60T31000M
R-B-8200071
RB60T31000P
R-B-8200071
RB60T31500M
R-B-8200067
RB60T31500P
R-B-8200067
Model #
Shaft Part #
RB24T10075
R-2100259
RB24T30075M
R-2100259
RB24T10100
R-3X302-1-P
RB24T30100M
R-3X302-1-P
RB24T30100P
R-3X302-1-P
RB24T30200M
R-3X302-1-P
RB24T30200P
R-3X302-1-P
Model #
Shaft Part #
All 30" models
R-3X302-1-P
Model #
Shaft Part #
All 36" models
R-3X302-1-P
Model #
Shaft Part #
RB42T30750M
R-3X303-2-P
All other 42" models
R-3X302-1-P
Model #
Shaft Part #
RB48T10200
R-3X302-1-P
RB48T30200M
R-3X302-1-P
RB48T30200P
R-3X302-1-P
RB48T10300
R-3X302-1-P
RB48T30300M
R-3X302-1-P
RB48T30300P
R-3X302-1-P
RB48T10500
R-3X302-1-P
RB48T30500M
R-3X302-1-P
RB48T30500P
R-3X302-1-P
RB48T10750
R-3X303-2-P
RB48T30750M
R-3X303-2-P
RB48T30750P
R-3X303-2-P
Model #
Shaft Part #
RB54T30300M
R-3X306-21-P
RB54T10500
R-3X303-2-P
RB54T30500M
R-3X303-2-P
RB54T30750M
R-3X303-2-P
RB54T31000M
R-3X303-2-P
Model #
Shaft Part #
All 60" models
R-3X306-30-P
Model #
Bearings Part #
RB24T10075
R-B-8100003
RB24T30075M
R-B-8100003
RB24T10100
R-B-8100004
RB24T30100M
R-B-8100004
RB24T30100P
R-B-8100004
RB24T30200M
R-B-8100004
RB24T30200P
R-B-8100004
Model #
Bearings Part #
All 30" models
R-B-8100004
Model #
Bearings Part #
All 36" models
R-B-8100004
Model #
Bearings Part #
RB42T30200M
R-B-8100004
RB42T30200P
R-B-8100004
RB42T30300M
R-B-8100004
RB42T30300P
R-B-8100004
RB42T30500M
R-B-8100004
RB42T30500P
R-B-8100004
RB42T30750M
R-B-8100005
Model #
Bearings Part #
RB48T10200
R-B-8100004
RB48T30200M
R-B-8100004
RB48T30200P
R-B-8100004
RB48T10300
R-B-8100004
RB48T30300M
R-B-8100004
RB48T30300P
R-B-8100004
RB48T10500
R-B-8100004
RB48T30500M
R-B-8100004
RB48T30500P
R-B-8100004
RB48T10750
R-B-8100005
RB48T30750M
R-B-8100005
RB48T30750P
R-B-8100005
Model #
Bearings Part #
All 54" models
R-B-8100005
Model #
Bearings Part #
All 60" models
R-B-8100005
Model #
Fan Blade Part #
Bushing Part #
RB24T10075
R-B-1B490
NA
RB24T30075M
R-B-1B490
NA
RB24T10100
R-B-1B475
R-B-8500087
RB24T30100M
R-B-1B475
R-B-8500087
RB24T30100P
R-B-1B475
R-B-8500087
RB24T30200M
R-B-1B475
R-B-8500087
RB24T30200P
R-B-1B475
R-B-8500087
Model #
Fan Blade Part #
Bushing Part #
All 30" models
R-B-1B510
R-B-8500087
Model #
Fan Blade Part #
Bushing Part #
All 36" models
R-B-1B560
R-B-8500087
Model #
Fan Blade Part #
Bushing Part #
RB42T30200M
R-B-1B610
R-B-8500087
RB42T30200P
R-B-1B610
R-B-8500087
RB42T30300M
R-B-1B610
R-B-8500087
RB42T30300P
R-B-1B610
R-B-8500087
RB42T30500M
R-B-1B610
R-B-8500087
RB42T30500P
R-B-1B610
R-B-8500087
RB42T30750M
R-B-1B610
R-B-8500088
Model #
Fan Blade Part #
Bushing Part #
RB48T10200
R-B-1B764
R-B-8500087
RB48T30200M
R-B-1B764
R-B-8500087
RB48T30200P
R-B-1B764
R-B-8500087
RB48T10300
R-B-1B764
R-B-8500087
RB48T30300M
R-B-1B764
R-B-8500087
RB48T30300P
R-B-1B764
R-B-8500087
RB48T10500
R-B-1B764
R-B-8500087
RB48T30500M
R-B-1B764
R-B-8500087
RB48T30500P
R-B-1B764
R-B-8500087
RB48T10750
R-B-1B764
R-B-8500088
RB48T30750M
R-B-1B764
R-B-8500088
RB48T30750P
R-B-1B764
R-B-8500088
Model #
Fan Blade Part #
Bushing Part #
RB54T30300M
R-B-1B800
R-B-8500088
RB54T10500
R-B-1B860
R-B-8500088
RB54T30500M
R-B-1B860
R-B-8500088
RB54T30750M
R-B-1B860
R-B-8500088
RB54T31000M
R-B-1B860
R-B-8500088
Model #
Fan Blade Part #
Bushing Part #
RB60T10500
R-B-1B901
R-B-8500088
RB60T30500M
R-B-1B901
R-B-8500088
RB60T30750M
R-B-1B900
R-B-8500088
RB60T30750P
R-B-1B900
R-B-8500088
RB60T31000M
R-B-1B900
R-B-8500088
RB60T31000P
R-B-1B900
R-B-8500088
RB60T31500M
R-B-1B900
R-B-8500088
RB60T31500P
R-B-1B900
R-B-8500088
Roof Curbs

Back to Replacement Parts List
