Hexa-Lite
SKU#:
HEXA-LITE HVLS
Operating on a 1.35 HP EC motor, minimal power consumption is combined with impressive air volumes to create the highly efficient Hexa-Lite HVLS Fan.
Hexa-Lite HVLS fans blanket a very large area by constantly moving air to create an expansive comfort zone. As a result, the big ceiling fan can create an evaporative cooling effect of three to four degrees throughout the facility.
During the heating season, the Hexa-Lite HVLS fan technology can destratify uneven temperatures that can be in excess of fifteen degrees from ceiling to floor. This results in significant energy savings since the heating system cycles less frequently.
FEATURES
- Equipped with six extruded anodized, high performance E420 design aluminum airfoils. Contoured for maximum air movement so environments become cooler faster.
- six wingtip fences constructed of nylon 66 redirect outward airflow into downward airflow to improve and direct airflow downwards.
- 1/4” powder-coated steel and anodized aluminum chassis resists rusting and corrosion even in cold and damp environments.
- Totally enclosed, fan cooled (TEFC) IP55 motor with precision finished gearbox for low noise and long service life. Sealed with lifetime synthetic oil.
- Quiet Performance & Minimal Maintenance.
- Conforms to CSA Standard 22.2# 133 and UL507.

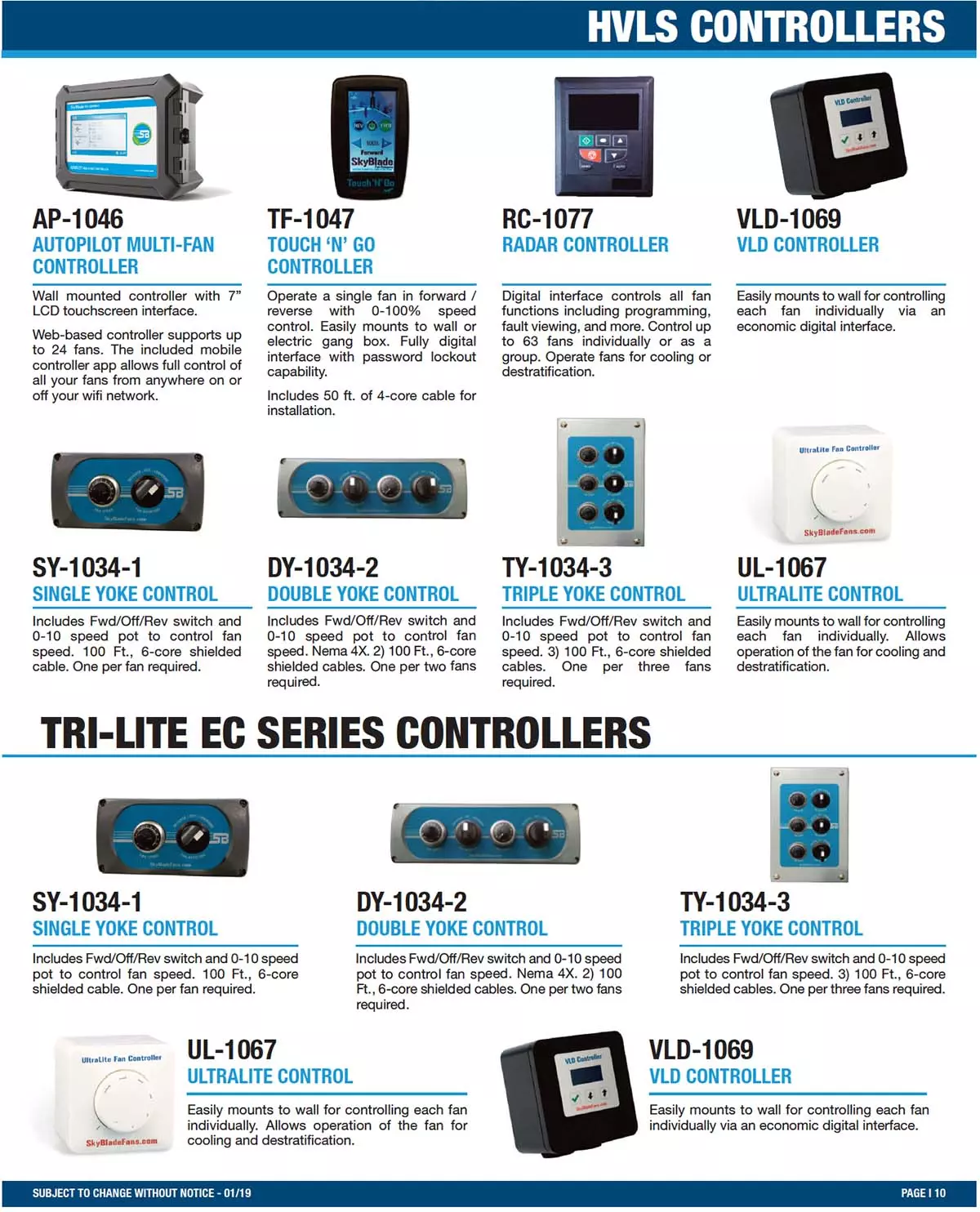

Note: Required controller sold separately. See controls section
 | |||
| MODEL | A | B*** | |
| 6L12-V*-P** | 12' | 39" | |
| 6L14-V*-P** | 14' | 39" | |
| 6L16-V*-P** | 16' | 39" | |
| 6L18-V*-P** | 18' | 39" | |
| 6L20-V*-P** | 20' | 39" | |
| 6L24-V*-P** | 24' | 39" | |
| *Replace V with Input Voltage 115, 230, 460 or 575. IE: 6L24-230-3. **Replace P with 1 (Single Phase) or 3 (Three Phase) ***Based on standard 1' extension bar | |||
