CEPD140-4 SERIES

SKU#:

CEPD140-4 SERIES

Canarm’s CEPD140-4 fan is ultra quiet and includes a DC motor for energy efficiency. Choose from 4 different CFM's using built in dip switches, and a second adjustable speed for continuous operation for whole house/building ventilation.

Features

  • Ultra quiet.
  • High performance and efficiency.
  • Two speed totally enclosed DC motor with thermal protection.
  • Selectable 80, 90, 110, 140 CFM
  • Continuous low speed operation(adjustable).
  • Time delay 5-30 minutes.
  • Complies with ASHRAE 62.2 whole house fan to meet minimum ventilation required by local building codes.
  • 6” Poly Collar with built in backdraft damper.
  • Premium low profile poly grille.
  • ETL listed for tub and shower when connected to a GFCI.

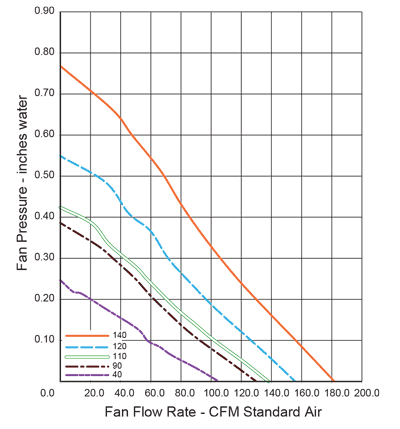

MODELSTATIC PRESSURE (IN W.G.)CFMSONESWATTSPOWER (V/HZ)DUCT DIAMETER
CEPD140-40.180< 0.36.0120/606"
90< 0.36.5
110< 0.38.7
1400.512.4
0.25490.97.8120/606"
570.98.3
831.010.6
1171.014.5














  • Light kit
  • Ceiling radiation damper
  • Factory options (special order):
    • Humidistat
    • Motion sensor
