BRIG HRV 120, 170 & 200, 300

Skip to the end of the images gallery

Skip to the beginning of the images gallery

BRIG HRV 120, 170 & 200, 300

SKU#:

BRIG HRV SERIES

Efficient centralized heat recovery ventilation.
Cross flow core with SRE up to 85%.
Silent operation.
Replaceable filters.
Simple installation and maintenance.
Compatible with 6” and 8” air ducts.
Electronic defrost protection.
3 year warranty.

MODEL	VOLTS	MAX WATTS	MAX AMPS	RPM	DUCT DIA.	NET SUPPLY AIRFLOW CFM (L/s)
						EXT. STATIC PRESSURE IN. WG (Pa)
						0.1" (25 Pa)	0.2" (50 Pa)	0.3" (75 Pa)	0.4" (100 Pa)	0.5" (125 Pa)	0.6" (150 Pa)	0.7" (175 Pa)	0.8" (200 Pa)	0.9" (225 Pa)	1.0" (250 Pa)	1.2" (300 Pa)	1.4" (350 Pa)
HRV 120	120V/60HZ	147	1.25	2590	6"	151	141	130	121	111	102	92	81	70	59	_	_
HRV 120	120V/60HZ	147	1.25	2590	6"	(71)	(67)	(61)	(57)	(52)	(48)	(43)	(38)	(33)	(28)	_	_
HRV 170	120V/60HZ	214	1.85	3040	6"	188	180	171	162	152	142	131	119	109	99	79	53
HRV 170	120V/60HZ	214	1.85	3040	6"	(89)	(85)	(81)	(77)	(72)	(67)	(62)	(56)	(51)	(47)	(37)	(25)
HRV 200	120V/60HZ	224	1.8	3040	6"	213	200	187	173	159	145	130	117	101	87	71	56
HRV 200	120V/60HZ	224	1.8	3040	6"	(101)	(94)	(88)	(82)	(75)	(68)	(61)	(55)	(48)	(41)	(34)	(26)
HRV 300	120V/60HZ	465	3.8	2500	6"	257	239	223	207	190	175	162	151	139	129	118	107
HRV 300	120V/60HZ	465	3.8	2500	6"	(121)	(113)	(105)	(98)	(90)	(83)	(76)	(71)	(66)	(61)	(56)	(50)
MODEL	MODE	TEMPERATURE		NET AIR FLOW		POWER CONSUMED (WATTS)		SENSIBLE RECOVERY EFFICIENCY SRE (%)
MODEL	MODE	°C	°F	(L/s)	(CFM)	POWER CONSUMED (WATTS)		SENSIBLE RECOVERY EFFICIENCY SRE (%)
HRV 120	HEATING	0	32	30	56	140		81
		0	32	38	80	143		77
		0	32	75	160	146		61
HRV 170	HEATING	0	32	29	62	206		81
		0	32	42	89	210		77
		0	32	84	178	211		65
HRV 200	HEATING	0	32	30	64	208		85
		0	32	45	95	210		83
		0	32	60	127	212		81
HRV 300	HEATING		32	30	64	444		80
		0	32	45	95	446		78
		0	32	60	127	447		77

Embedded image

Embedded image

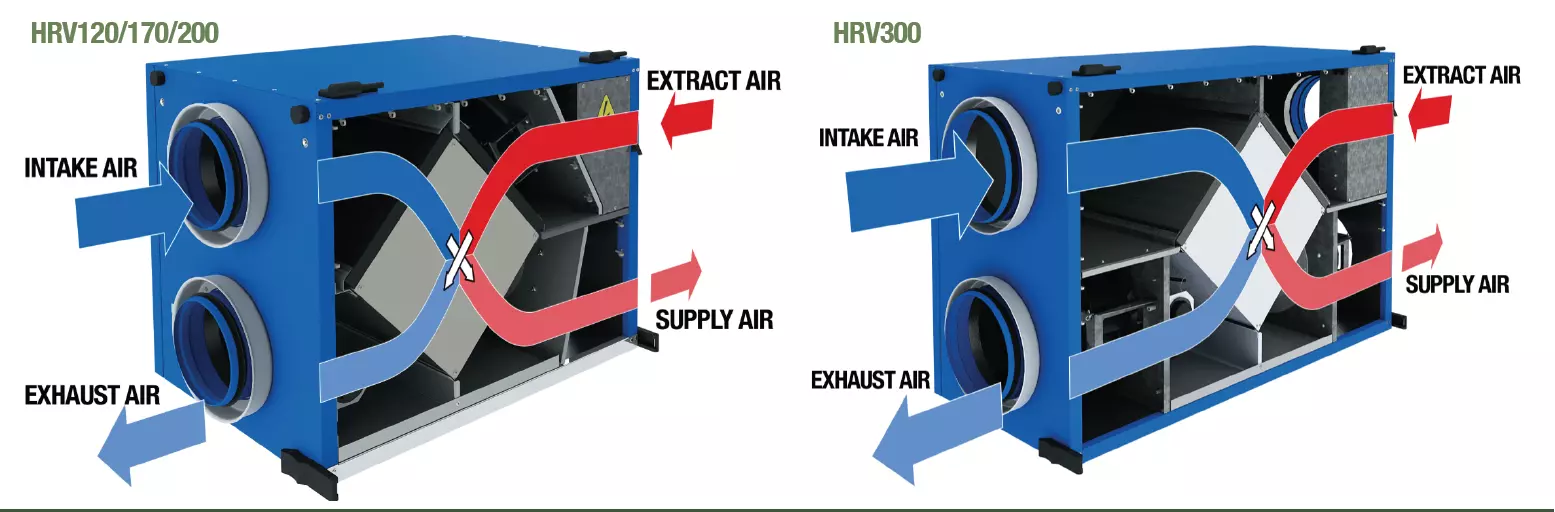

BRIG HRV SERIES AIRFLOW

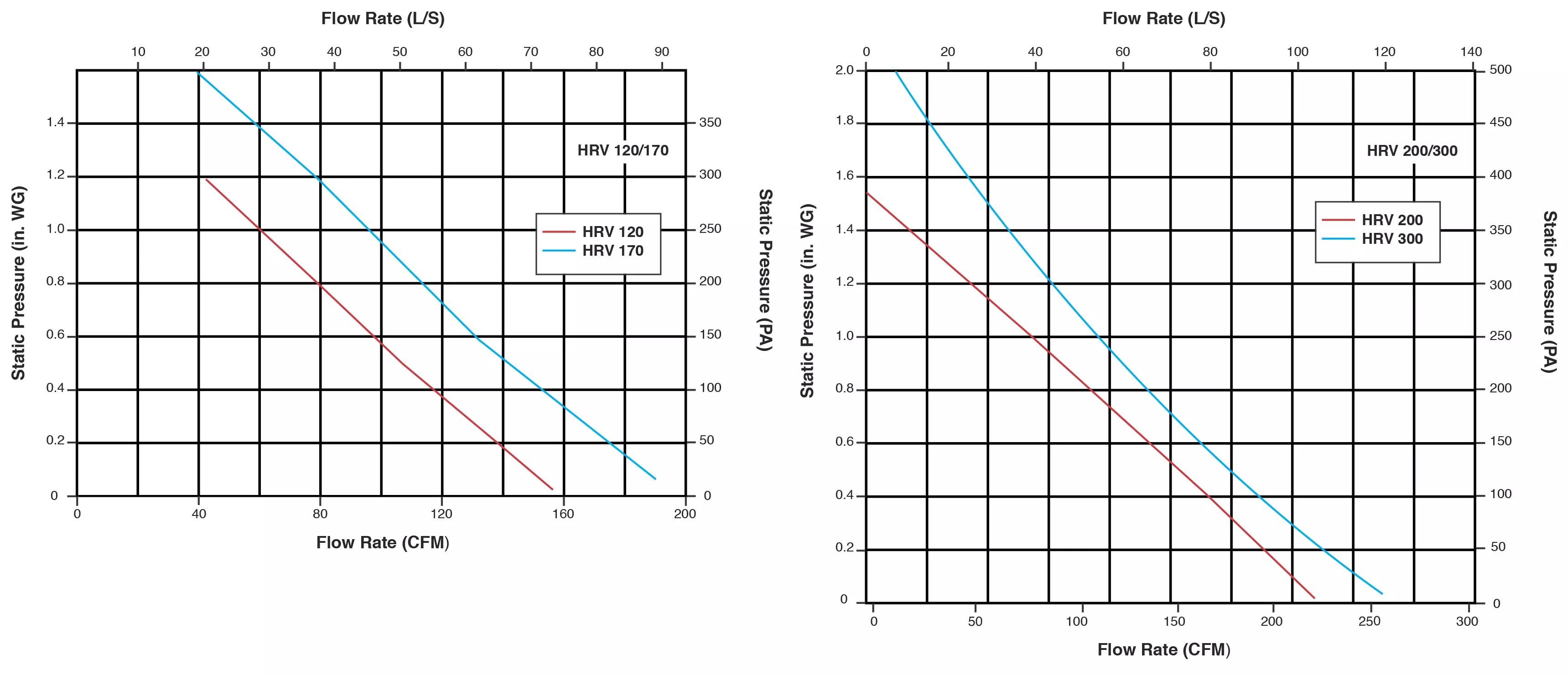

BRIG HRV SERIES CURVES

Air Disk Valve.
Backdraft Damper.
Clamps.
