ALX-UD-EC Upblast Direct Drive Spun Alum Exhauster
SKU#:
ALX-UD-EC SERIES
Ideal for exhausting air from restaurants, offices, warehouses or commercial buildings. The ALX series spun aluminum exhaust fan can be used as either a roof top or wall mount exhaust fan.
- Spun aluminum housing will not rust, chip or peel.
- Aluminum backward inclined wheel is non-overloading.
- All motors are 1 Phase 120/240V operation and can be operated at 50 or 60 Hz.
- All units can be wall mounted.
- Quick release latches for easy motor access.
- EC motors offer true variable speed operation and up to 70% energy savings over PSC motors.
- On-board speed adjustment allows simple setup and balancing with LED display.
- Can be controlled remotely up to 50’ using a remote mount potentiometer or 0-10V.
- Featuring EC Motors - Up to 82% Efficiency

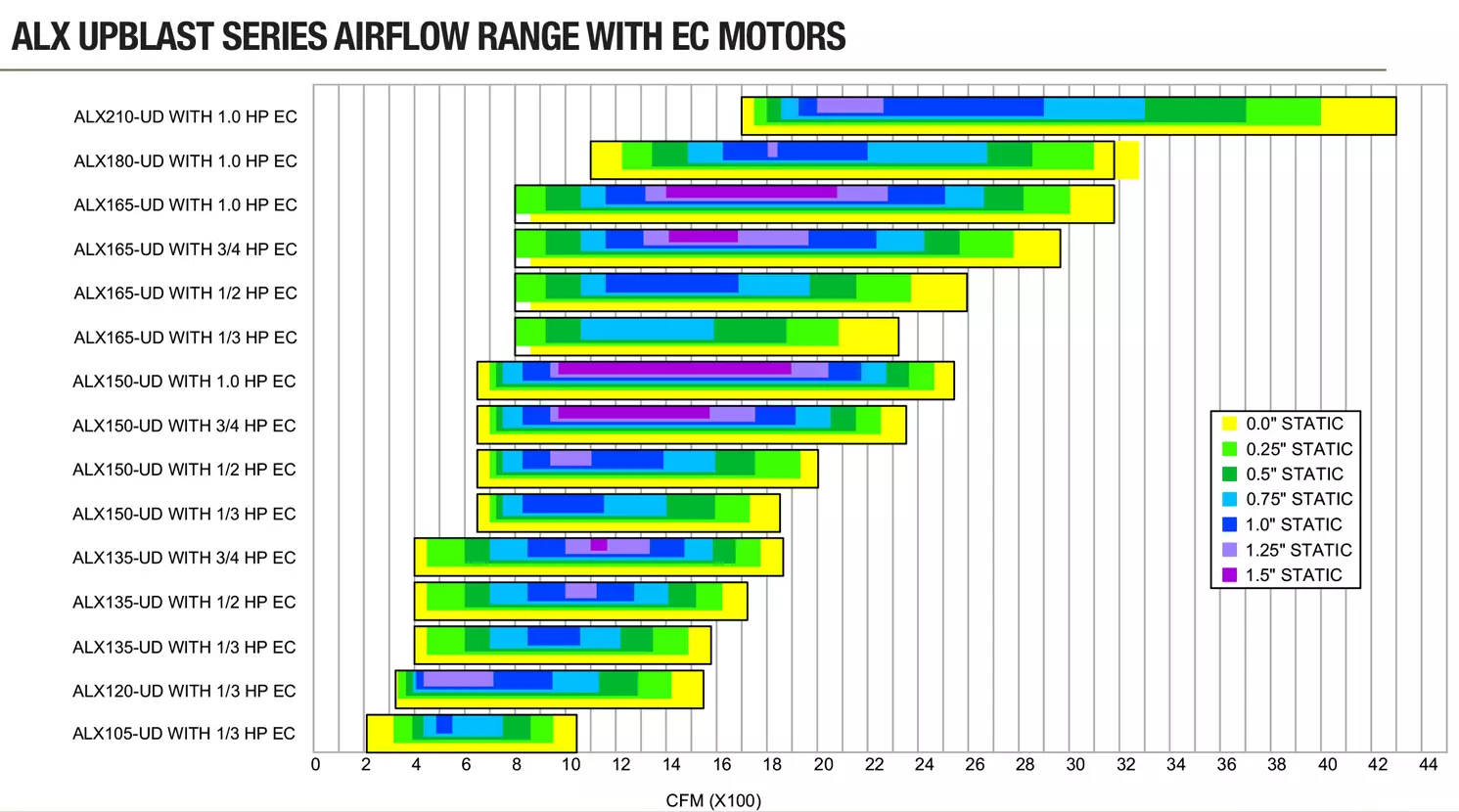

| UNIT | MOTOR | AIRFLOW (CFM) @ STATIC PRESSURE | |||||||||||||||||||||||||||||||||
| HP | Variable Speed | Max RPM | 0" SP | 1/4" SP | 1/2" SP | 3/4" SP | 1" SP | 1-1/4" SP | 1-1/2" SP | 2" | |||||||||||||||||||||||||
| High | Low | High | Low | High | Low | High | Low | High | Low | High | Low | High | Low | High | Low | ||||||||||||||||||||
| ALX105-UD033EC | 1/3 | Y | 1800 | 1051 | 217 | 954 | 319 | 866 | 393 | 732 | 440 | 534 | 483 | - | - | - | - | - | - | ||||||||||||||||
| ALX120-UD050EC | 1/2 | Y | 1800 | 1548 | 325 | 1422 | 336 | 1282 | 367 | 1133 | 395 | 947 | 408 | 633 | 438 | - | - | - | - | ||||||||||||||||
| ALX135-UD033EC | 1/3 | Y | 1350 | 1578 | 400 | 1491 | 450 | 1346 | 600 | 1212 | 700 | 1053 | 850 | - | - | - | - | - | - | ||||||||||||||||
| ALX135-UD050EC | 1/2 | Y | 1550 | 1850 | 400 | 1775 | 450 | 1650 | 600 | 1525 | 700 | 1375 | 850 | 1200 | 1000 | - | - | - | - | ||||||||||||||||
| ALX135-UD075EC | 3/4 | Y | 1750 | 2100 | 400 | 2000 | 450 | 1900 | 600 | 1800 | 700 | 1700 | 850 | 1575 | 1000 | 1450 | 1100 | - | - | ||||||||||||||||
| ALX150-UD033EC | 1/3 | Y | 1100 | 1735 | 600 | 1594 | 579 | 1403 | 663 | 1157 | 767 | - | - | - | - | - | - | - | - | ||||||||||||||||
| ALX150-UD050EC | 1/2 | Y | 1350 | 2003 | 581 | 1934 | 688 | 1754 | 680 | 1595 | 733 | 1389 | 823 | 1114 | 765 | - | - | - | - | ||||||||||||||||
| ALX150-UD075EC | 3/4 | Y | 1550 | 2353 | 696 | 2261 | 711 | 2161 | 733 | 2048 | 674 | 1917 | 827 | 1751 | 940 | 1574 | 980 | 1269 | 1052 | ||||||||||||||||
| ALX165-UD050EC | 1/2 | Y | 1200 | 2595 | 861 | 2372 | 800 | 2155 | 921 | 1970 | 1068 | 1687 | 1155 | - | - | - | - | - | - | ||||||||||||||||
| ALX165-UD075EC | 3/4 | Y | 1350 | 2965 | 861 | 2780 | 800 | 2579 | 921 | 2427 | 1068 | 2236 | 1155 | 1986 | 1318 | 1682 | 1405 | - | - | ||||||||||||||||
| EC Motors can be controlled using the built in potentiometer on motor or by using a 0 to 10 V controller, or by a remote potentiometer. | |||||||||||||||||||||||||||||||||||
| Model | Motor | Airflow (CFM) @ Static Pressure | |||||||||||||||||||||||||||||||||
| HP | Variable Speed | Max RPM | 0" SP | 1/4" SP | 1/2" SP | 3/4" SP | 1" SP | 1-1/4" SP | 1-1/2" SP | 1-3/4" SP | |||||||||||||||||||||||||
| CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | CFM | BHP | FEI | FEPact (KW) | ||||
| ALX150-UD100EC | 1 | Y | 1700 | 2544 | 0.81 | 0.46 | 0.73 | 2462 | 0.84 | 0.66 | 0.76 | 2361 | 0.87 | 0.81 | 0.78 | 2276 | 0.89 | 0.96 | 0.80 | 2173 | 0.92 | 1.07 | 0.82 | 2050 | 0.94 | 1.16 | 0.84 | 1896 | 0.95 | 1.22 | 0.85 | 1496 | 0.94 | 1.15 | 0.84 |
| ALX165-UD100EC | 1 | Y | 1500 | 2974 | 0.85 | 0.50 | 0.77 | 2878 | 0.89 | 0.70 | 0.80 | 2767 | 0.93 | 0.87 | 0.83 | 2622 | 0.96 | 1.00 | 0.86 | 2450 | 1.00 | 1.09 | 0.89 | 2216 | 0.99 | 1.17 | 0.88 | 1973 | 0.99 | 1.21 | 0.88 | 1703 | 0.99 | 1.21 | 0.88 |
| ALX180-UD100EC | 1 | Y | 1200 | 3400 | 0.75 | 0.62 | 0.68 | 3200 | 0.78 | 0.86 | 0.71 | 3000 | 0.81 | 1.05 | 0.73 | 2700 | 0.84 | 1.16 | 0.76 | 2400 | 0.88 | 1.21 | 0.79 | 2025 | 0.85 | 1.26 | 0.77 | - | - | - | - | - | - | - | - |
| ALX210-UD100EC | 1 | Y | 900 | 4300 | 0.94 | 0.61 | 0.84 | 4000 | 0.96 | 0.86 | 0.86 | 3725 | 0.96 | 1.08 | 0.86 | 3400 | 0.96 | 1.24 | 0.86 | 2900 | 0.96 | 1.30 | 0.86 | 2200 | 0.96 | 1.20 | 0.86 | - | - | - | - | - | - | - | - |
| CFM values listed are summarized for convenience. For full performance data refer to our Delair program. | |||||||||||||||||||||||||||||||||||
| For expanded FEI data click here. | |||||||||||||||||||||||||||||||||||
 | |||||||||||||||||||||||||||||||||||
 | |||||||||||||||||||||||||||||||||||
 | |||||||||||
| MODEL | DIMENSIONS (INCHES) | WEIGHT (lbs) | |||||||||
| A | B | C | C2 | D | E | F | G Ø | Wheel Diameter | Roof Opening | ||
| ALX105-UD-EC | 20.00 | 25.00 | 19.00 | 21.00 | 13.00 | 1.50 | 3.50 | 0.38 | 10.50 | 15.00 | 35 |
| ALX120-UD-EC | 21.00 | 25.00 | 19.00 | 21.00 | 13.00 | 1.50 | 3.50 | 0.38 | 12.25 | 15.00 | 37 |
| ALX135-UD-EC | 24.25 | 32.13 | 21.00 | 24.75 | 17.13 | 2.00 | 3.75 | 0.44 | 13.50 | 17.00 | 53 |
| ALX150-UD-EC | 24.25 | 32.13 | 21.00 | 24.75 | 17.13 | 2.00 | 3.75 | 0.44 | 15.00 | 17.00 | 58 |
| ALX165-UD-EC | 27.13 | 37.50 | 24.75 | 28.00 | 21.13 | 2.00 | 4.00 | 0.44 | 16.50 | 20.75 | 100 |
| ALX180-UD-EC | 31.75 | 37.50 | 28.00 | 24.75 | 21.13 | 2.00 | 4.00 | 0.44 | 18.25 | 20.75 | 116 |
| ALX210-UD-EC | 37.50 | 43.75 | 33.13 | 40.00 | 25.50 | 2.50 | 4.00 | 0.44 | 21.00 | 29.00 | 178 |
