9200 Series Forward Curved Inline Duct Blowers

Applications:

An Inline make-up air solution for cases where a rooftop curb mounted solution is not available.
As an air moving module for systems built up with other components such as heating/cooling coils.
Noise sensitive areas - the low rpm forward curved wheel typically radiates less vibration than higher rpm backward inclined wheel solutions.
When the application requires an air mover in a duct system located in a ceiling space.
Redistribution or recirculation of air in a work space.
Interlocked with entry doors to prevent entry of cold outdoor air into retail sales space and thus greets customers with warmth.
Bathroom/ rest room exhaust - one duct blower serving multiple intakes.
Industries Served: Commercial HVAC, Ventilation, Heating, Cooling, Construction.

Features:

Wheel Diameters: 7” through 20”.
CFM: Approximately 500 to 12,500 CFM in a single blower (Twins available).
Static Pressure: Usage to about 3” static pressure is common, although allowable range is higher.
Constructed from cold rolled steel, with green baked on powder coat. The outdoor unit uses protective galvaneal steel under the powder coat.
Forward Curved blowers operate at low RPM for low noise levels.
Heavy duty ball bearings suitable for -65º F to +250º F.
Keywayed shafts both ends for clockwise or counter clockwise rotation.
Saddle type motor mounting platform provides extended belt tension adjustment range on all models.
As part of an HVAC system Delhi Duct Blowers will not “surge”, “hunt”, or “stall”.
The variable pitch motor pulley permits field adjustment (typically + or - 15%) to match air delivery needs.
For the quietest operational needs we offer optional internal spring isolation of the blower/motor from the housing thus greatly reducing radiated cabinet noise.
Twin units (two duct blowers on a common shaft) offer a wide but not tall solution for situations where vertical space is limited.
Quiet forward curved blowers operate at ½ the rpm of other inline solutions.

TYPICAL MAXIMUM CFM @ SP
MODEL	1/2” SP				1” SP				1 1/2” SP				2" SP				2 1/2" SP				Min HP	Max HP
MODEL	CFM	BHP	FEI	FEPact (Kw)	CFM	BHP	FEI	FEPact (Kw)	CFM	BHP	FEI	FEPact (Kw)	CFM	BHP	FEI	FEPact (Kw)	CFM	BHP	FEI	FEPact (Kw)	Min HP	Max HP
207	1400	0.68	0.80	0.69	1300	0.69	0.96	0.70	1100	0.66	1.05	0.67	1000	0.72	1.08	0.73	800	0.73	1.04	0.74	1/6	3/4
209	2000	0.75	0.91	0.76	1800	0.75	1.09	0.76	1500	0.71	1.21	0.72	1100	0.71	1.12	0.72	800	0.71	1.04	0.72	1/6	3/4
9209	2500	1.36	0.65	1.30	2400	1.41	0.81	1.34	2300	1.5	0.91	1.42	2100	1.48	1.01	1.40	1900	1.49	1.07	1.41	1/6	1 1/2
210	3000	1.46	0.77	1.38	2800	1.41	0.96	1.34	2600	1.49	1.04	1.41	2300	1.5	1.09	1.42	1900	1.47	1.08	1.39	1/6	1 1/2
9210	3000	1.46	0.71	1.38	2800	1.41	0.90	1.34	2600	1.49	1.00	1.41	2300	1.48	1.07	1.40	1900	1.46	1.07	1.38	1/6	1 1/2
212	3700	1.44	0.86	1.37	3300	1.47	0.99	1.39	2900	1.5	1.07	1.03	2400	1.47	1.10	1.39	1600	1.43	0.93	1.36	1/6	1 1/2
9212	4900	2.91	0.63	2.62	4600	3	0.74	2.70	4200	2.92	0.84	2.63	3900	2.99	0.91	2.69	3500	2.92	0.98	2.63	1/6	3
215	6100	2.9	0.77	2.61	5800	2.95	0.93	2.65	5000	2.98	0.96	2.68	4100	2.93	0.94	2.64	3700	2.93	1.00	2.64	1/3	3
9215	7700	4.95	0.62	4.33	7200	4.88	0.74	4.27	6800	5	0.83	4.37	6300	4.96	0.91	4.34	5800	4.97	0.96	4.35	1/3	5
218	9700	4.93	0.74	4.32	9000	4.97	0.86	4.35	8200	4.95	0.96	4.33	7400	4.97	1.01	4.35	6200	4.94	0.98	4.32	1/2	5
9218	9500	4.95	0.71	4.33	8800	4.91	0.85	4.30	8000	4.94	0.93	4.32	7200	4.98	0.98	4.36	6100	4.92	0.97	4.31	1/2	5
9220	16000	14.78	0.45	12.50	15400	14.88	0.54	12.50	14800	14.96	0.62	12.60	14100	14.9	0.69	12.60	13300	14.8	0.75	12.50	3/4	15

CFM values listed are summarized for convenience. For full performance data refer to our Delair program.
Power rating (BHP) does not include transmission losses. Performance certified is for installation type B: Free inlet, Ducted outlet. Performance ratings do not include the effect of appurtenances (accessories).
For expanded FEI data click here.

Dimensions

MODEL

A

B

C

OUTLET

F

G

H

J

K

INLET

SHAFT
DIAMETER

WEIGHT (lbs) without motor

D

E

L

M

9209

21"

18"

23"

11 1/4"

12 3/4"

N/A

1"

N/A

1 1/8"

19"

16"

3/4"

61

9210

22 1/4"

20"

24 3/4"

12 3/8"

14 1/8"

N/A

1"

N/A

1 1/8"

20 1/4"

18"

3/4"

70

9212

30 1/8"

24 3/4"

34"

14 1/2"

16 5/8"

N/A

2 1/8"

N/A

1 1/8"

25 1/8"

21 1/8"

1"

143

9215

33 3/4"

28 5/8"

38 1/8"

17"

19 5/8"

N/A

2 1/8"

N/A

1 1/8"

30 5/8"

25 1/4"

1"

176

9218

41 1/2"

34"

44"

19 5/8"

22 5/8"

N/A

2 3/4"

N/A

1 1/8"

35 3/8"

31 5/8"

1"

323

9220

44 3/4"

41 1/8"

57 1/2"

25 3/4"

N/A

3"

N/A

1 1/8"

38 3/8"

35 1/8"

1 7/16"

515

Replacement Parts

View replacement parts

Accessories

Filter sections.
Intake Hoods.
External Vibration Isolator Outdoor Spring.
External Vibration Isolator Spring.
Hot Water Coils.
Chilled Water Coils.

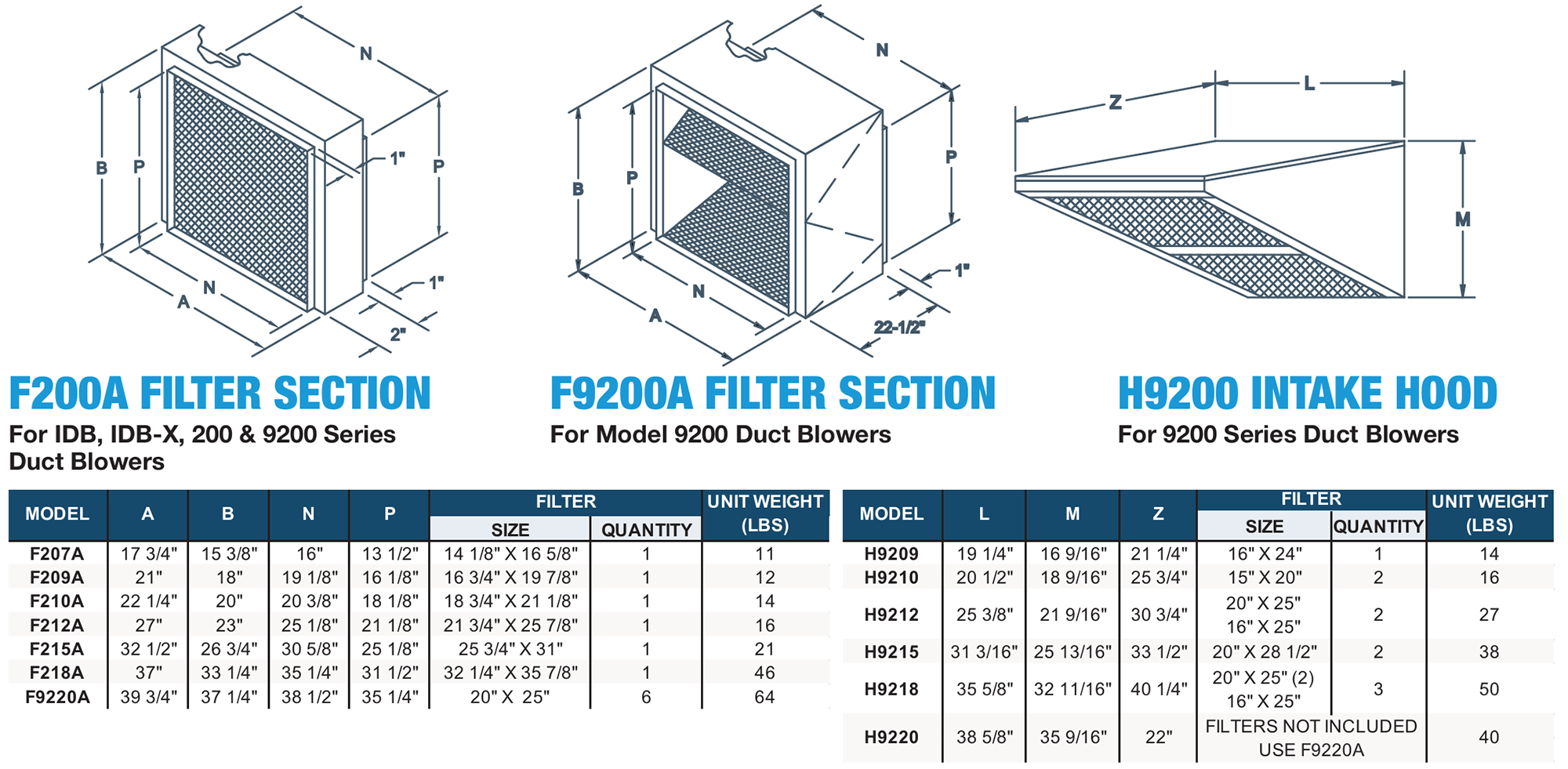

9200 SERIES FILTER
