TF Stainless Steel Panel Fans
SKU#:
TF SERIES
- Available in 12”, 16”, 24” and 36” sizes.
- Dual voltage, totally enclosed, variable speed (except for 36”), high efficiency ball bearing motors with thermal overload protection.
- Canarm’s exclusive “Rotair” air foil polypropylene blade is designed to deliver high volumes of air quietly and efficiently.
- The single speed 36” model has a high performance galvanized blade.
- Stainless steel panel will not rust and has an 4” extension to allow the installation of an air bag.
- All fans are shipped completely assembled.
 | |||||

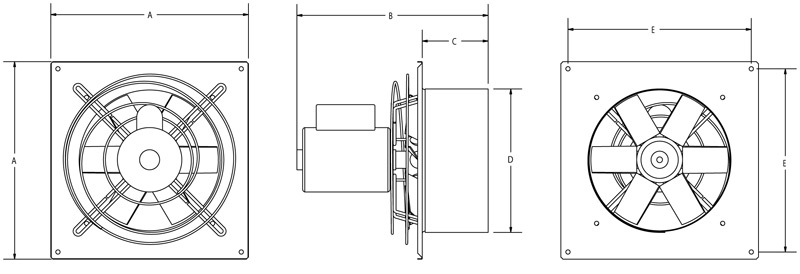

| FAN | A | B | C | D | E |
| TF12 | 17.25" | 16.75" | 5.75" | 12.5" | 16" |
| TF16 | 21.25" | 16.75" | 5.75" | 16.5" | 20" |
| TF24 | 29.25" | 16.75" | 5.75" | 24.62" | 28" |
| TF36 | 38.87" | 12.5" | 3.62" | 36.75" | 37.5" |
