FGI Fiberglass Exhaust Fan

The patented design provides excellent performance without a cone.
All fans are supplied completely assembled and are tested before shipping.
Chop & Spray design with smooth inside for improved cleaning.
Self draining, sloped housing is quick and easy to clean reducing maintenance costs.
T-Mount belt drive system provides quick, easy access to motor & blade.
Belt drive units are supplied complete with belt tensioner and easily accessible, high quality rubber belt.
All fans have smooth operating, easy to clean, poly shutters with stainless steel frame and 1.5"x1.5" protective mesh screen.
36” and 50” belt drive fans.
18”, 24” and 36” direct drive fans.
Also available with EC motors

		Specifications							Model Number Specify bulk pack or single	TESTED AT	Test Code	Performance
		motor						blade mat'l				rpm	Dba	cone	0.00"SP		0.05"SP			0.10"SP		test code & report		test code	AFR
		type	speed	hp	voltage	phs	hz	blade mat'l				rpm	Dba	cone	cfm	cfm/w	cfm	cfm/w	amps	cfm	cfm/w	test code & report		test code	AFR
BELT DRIVE	50"	high eff	single	1	230	1	60	galv.	FG50B		00071	610	77	Y	2800	25.2	26500	22.1	5.5	24800	19.5	B00071		B	0.78
		high eff	single	1	230	1	60	galv.	FG50B		00072	610	77	N	25900	22.5	24400	20	5.7	22800	17.7	B00072		B	0.79
		high eff	single	1	230	1	60	galv.	FG50B		00066	578	---	Y	25900	27.1	24100	23.5	--	22400	20.5	66			0.75
		high eff	single	1	230	1	60	galv.	FG50B		00773	578	---	N	24500	24.5	22900	21.4	--	21100	18.9	00773			0.75
		high eff	single	1	115/230	1	60	galv.	FG50H		00061	630	---	Y	28200	22.7	26700	20.3	--	25200	18.1	00061		B	0.81
		high eff	single	1	115/230	1	60	galv.	FG50H		00056	630	---	N	26800	20	25300	18.1	--	24000	16.4	00056		B	0.82
	36"	high eff	single	1	230	1	60	galv.	FG36H		02201	850	80	Y	17010	18.5	16200	17.5	4.9	15340	15.6	02201			0.79
BELT DRIVE		high eff	single	1	230	1	60	galv.	FG36H		02200	850	80	N	16000	16.6	15210	15.2	5	14400	14	02200			0.8
		high eff	single	1/2	115/230	1	60	galv.	FG36H		00080	850	75	Y	12300	26.1	11300	22.5	2.47	10500	19.5	B00080		B	0.71
		high eff	single	1/2	115/230	1	60	galv.	FG36H		00075	850	75	N	11400	22.5	10600	19.4	2.63	9800	17.2	B00075		B	0.71
	24"	high eff	vari	1/3	115/230	1	50/60	6-poly	FG24CV		210114V	1100	75	Y	6350	15.3	6000	14.2	1.92	5750	13.3	C210114V		C	0.08
	24"	high eff	vari	1/3	115/230	1	50/60	6-poly	FG24CV		210107V		75	N	5850	13.6	5600	13	1.93	5200	12.3	C210107V		C	0.07
	18"		vari	1/3	115/230	1	60	6-poly	FG18CV		---	1075	65	Y	cone is not available
	18"		vari	1/3	115/230	1	60	6-poly	FG18CV		---	1075	65	N	TBA
		Model Codes: 3 = three phase, A= aluminum blade, B= Blue Ribbon,H=high output, DB=36"belt drive, DB4=3/4"hp 36" belt, V=variable speed,C= corrosion resistant Notes:AFR is the airflow ratio. Highter AFR indicates better performance under static pressure or against wind. It is calaculated by dividing fan cfm at 0.20 static pressure by cfm at 0.05sp.
		Sound leve measured 5ft in front of fan discharge. Amps measured at highest voltage. Amps at lower voltage approximately doubled. Request 200 volt motor for 208 volt 3 phase applications. *Fan was tested at 230 volts with 4.20 amps, at 460 volts it will be 2.10 amps.







		FGI-EC Series Fans
		Specifications							Model	TESTED AT	Test Code	Performance																	Rough Opening Required
		Specifications												0.05"SP								0.1"SP
		Motor				Shutter Frame		Blade mat'l				cone	Running @ 100%				Running @ 60%				Running @ 100%				Running @ 60%
		type	spd	volt	hp	Shutter Frame		Blade mat'l				cone	rpm	cfm	cfm/w	amps	rpm	cfm	cfm/w	amps	rpm	cfm	cfm/w	amps	rpm	cfm	cfm/w	amps
Direct	18"	Leeson	Variable	230	1/3	Stainless Steel		Plastic	FG18-EC		16729	N	1400	3330	10.8	2.5	820.0	780	12.6	0.59	1400	3110	10.4	2.5	820.0	560	8.8	0.61	24.75" Sqr
	24"	Leeson		230	1/2	Stainless Steel		Plastic	FG24-EC		16727	N	1250	5660	8.9	4.77	652	1870	22.5	0.82	1250	5360	8.7	4.61	652	1090	13.0	0.83	31" Sqr
	36"	Canarm		230	3/4	Stainless Steel		Galvanized	FG36-EC		16730	N	900	14940	16.5	6.56	564	7920	31.1	2.17	900	14060	15.2	6.69	564	6040	21.1	2.38	43" Sqr
	36"	Canarm		230	3/4	Stainless Steel		Galvanized	FG36-EC		16733	Y	900	15860	18.1	6.44	564	8200	33.3	2.10	900	15010	16.5	6.56	564	6190	23.1	2.29	43" Sqr

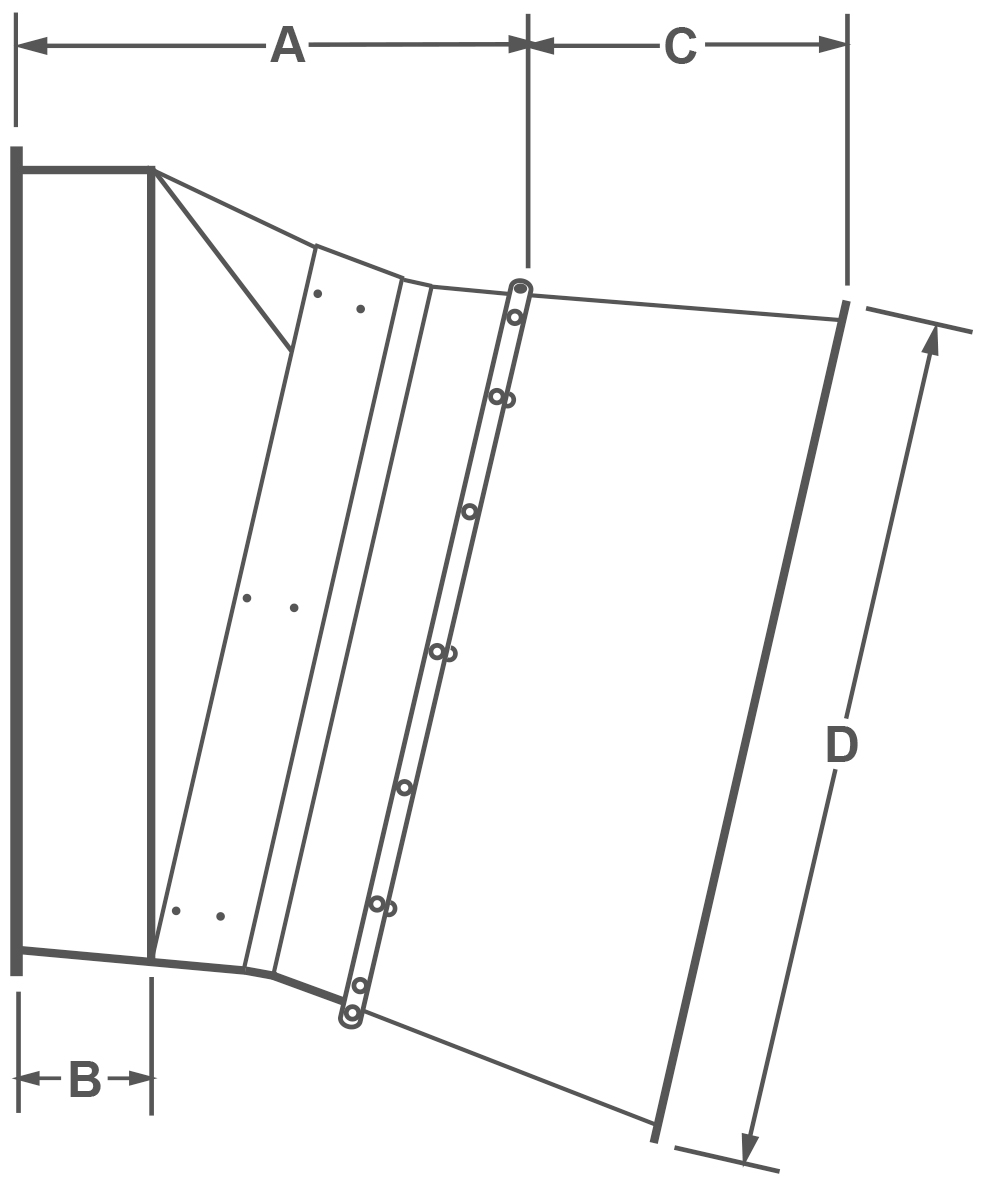

Dimensions


					FRAMING DIMENSIONS
FAN SIZE	FAN		CONE		WIDTH	HEIGHT
FAN SIZE	A	B	C	D	All Walls	4" & 6" Wall	9" Wall
18"	28	9	-	-	24.75	24.75	25.25
24"	31	9	19	33	31	31	31.5
36"	34	9	21	47	43	43	43.5
50"	44	9	25	64	57	57	57.5

FGI Fiberglass Fans
