FGC Fiberglass Fans
SKU#:
FGC FIBERGLASS SERIES
HIGH EFFICIENCY • LOW COST MAINTENANCE • LOW COST INSTALLATION
AVAILABLE IN 54" SIZE
Ideally suited for poultry, swine, dairy and greenhouse applications
- Heavy Duty Fiberglass Injection Molded Housing
- Performance enhancing cone included
- All fans are fully tested before shipping.
- Designed with smooth inside and outside for improved cleaning.
- Self draining, sloped housing is quick & easy to clean reducing maintenance costs.
- Belt or direct drive options available.
- All fans have smooth operating, easy to clean poly shutters.
| Specifications | Model Number | TESTED AT | Performance | ||||||||||||||||||||||||||||
| motor | blade mat'l | rpm | Dba | cone | 0.00"SP | 0.05"SP | 0.10"SP | ||||||||||||||||||||||||
| type | speed | hp | hz | cfm | cfm/w | amps | cfm | cfm/w | amps | cfm | cfm/w | amps | |||||||||||||||||||
| DIRECT DRIVE | 36" | EC | Vari | 3/4 | 50/60 | galv. | FGC36W-EC |  | 850 | 75 | Y | 14240 | 22 | 2.5 | 13260 | 19.5 | 2.61 | 12580 | 16.8 | 2.79 | |||||||||||
| AC | Single | 1 | 60 | galv. | FGC36W23G31 | | 850 | 75 | Y | 14510 | 18.1 | 3.55 | 13450 | 15.8 | 3.69 | 13020 | 14.8 | 3.81 | |||||||||||||
| AC | Single | 1/2 | 60 | galv. | FGC36W40G31 | | 850 | 75 | Y | 11400 | 20.1 | 2.6 | 10600 | 17.6 | 2.63 | 9800 | 15.9 | 2.7 | |||||||||||||
| DIRECT DRIVE | 54" | HE | Vari | 2 | 50 | galv. | FGC54W-HE | | 600 | 70 | Y | 29670 | 23 | 3.9 | 28130 | 20.5 | 4.1 | 26560 | 18.5 | 4.3 | |||||||||||
| 524 | Y | 25820 | 28.5 | 3 | 24010 | 25 | 3.3 | 22120 | 22 | 3.4 | |||||||||||||||||||||
| BELT DRIVE | 54" | AC | ON/OFF | 2 | 60 | galv. | FGC54 | | 575 | 75 | Y | 28490 | 18.5 | 6.9 | 26890 | 17 | 7.1 | 25340 | 16 | 7.3 | |||||||||||
| |||||||||||||||||||||||||||||||
 | |||||||

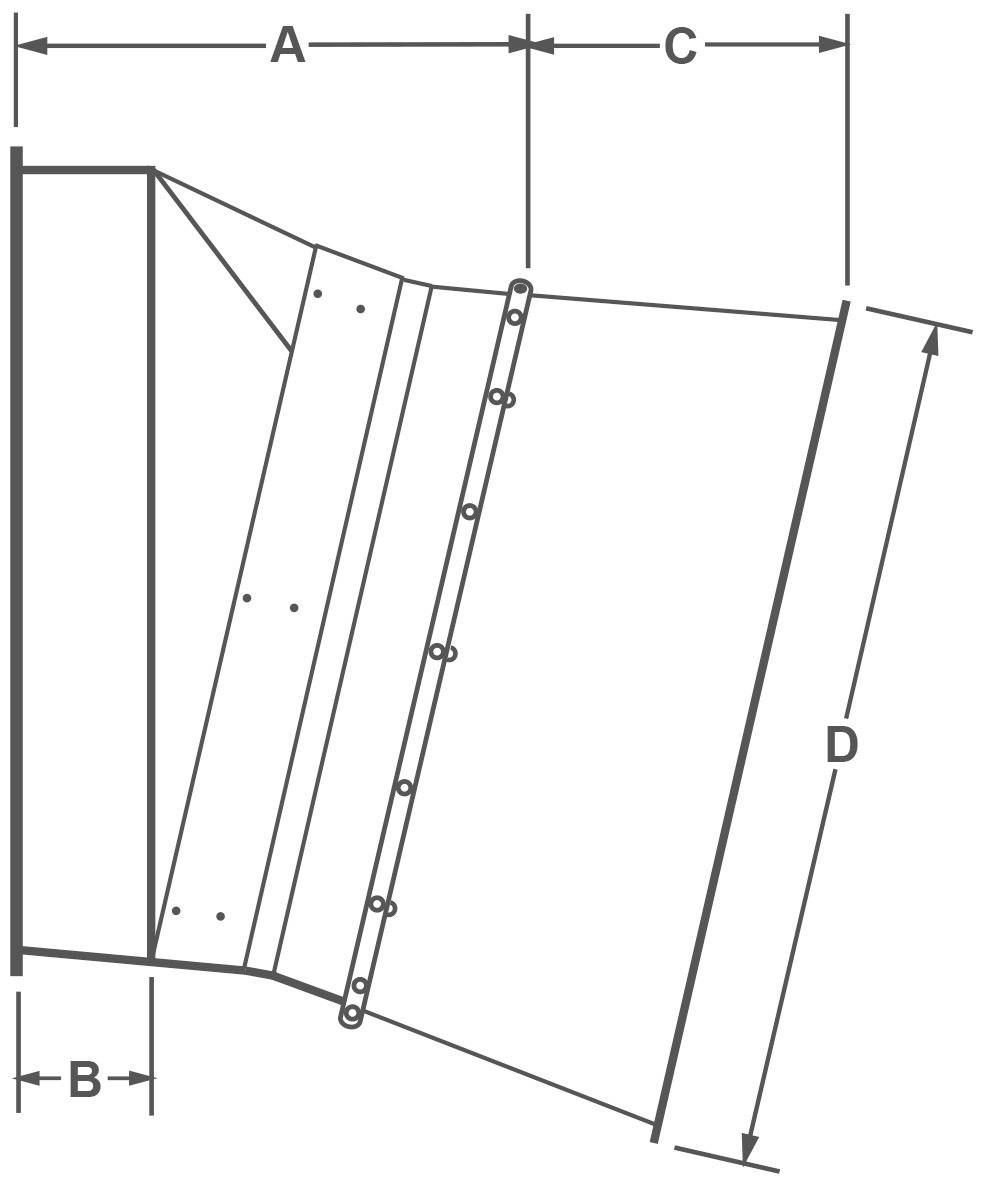

| FRAMING DIMENSIONS | |||||||
| FAN SIZE | FAN | CONE | WIDTH | HEIGHT | |||
| A | B | C | D | All Walls | 4" & 6" Wall | 9" Wall | |
| 36" | 27" | 8" | 24" | 42" | 45.5" | 45.5" | 45.5" |
| 54" | 25" | 8" | 32" | 63.5" | 63.75" | 63.75" | 64.25" |
